Sonoff WS01STPF-E Wall Socket Type F Schuko 16A 4000W PC White
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

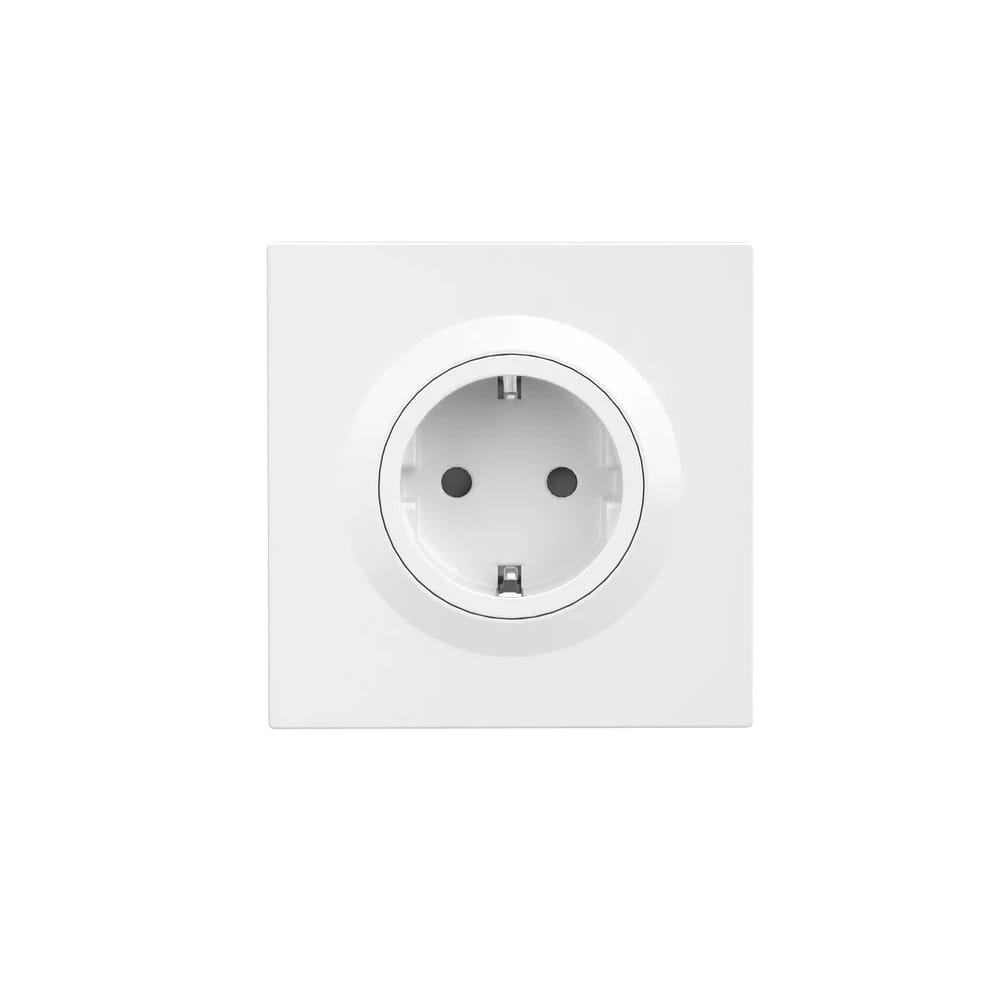

SONOFF Fusion Traditional Wall Socket | WS01STPF-E
Classic Schuko wall socket from the elegant series SONOFF Fusion (model WS01STPF-E). This is a standard, fully reliable wall socket without built-in smart features, designed for safe and stable power supply for home appliances. Thanks to its high maximum load capacity 16A and the use of materials resistant to external factors, it is perfect for any room, from the living room to demanding environments such as kitchens and bathrooms.
Key features:
- No Smart features: A traditional, easy-to-use socket without wireless modules.
- High power: Support for a maximum load of 16A allows for powering energy-intensive devices (e.g., air conditioners, heaters).
- Fireproof protection: The housing made of high-quality polycarbonate effectively reduces the risk of ignition in case of overheating.
- Durable construction: Internal copper alloy components ensure a lifespan of up to 20 000 plug insertion and removal cycles.
- Child safety protection: Built-in current path shutters protect against accidental finger insertion.
- Moisture resistance: Excellent corrosion protection confirmed by salt spray tests.
High quality and compatibility
The socket is made using the highest quality copper alloys, which significantly reduces energy loss and heat generation. This ensures safer and more stable operation over a long period.

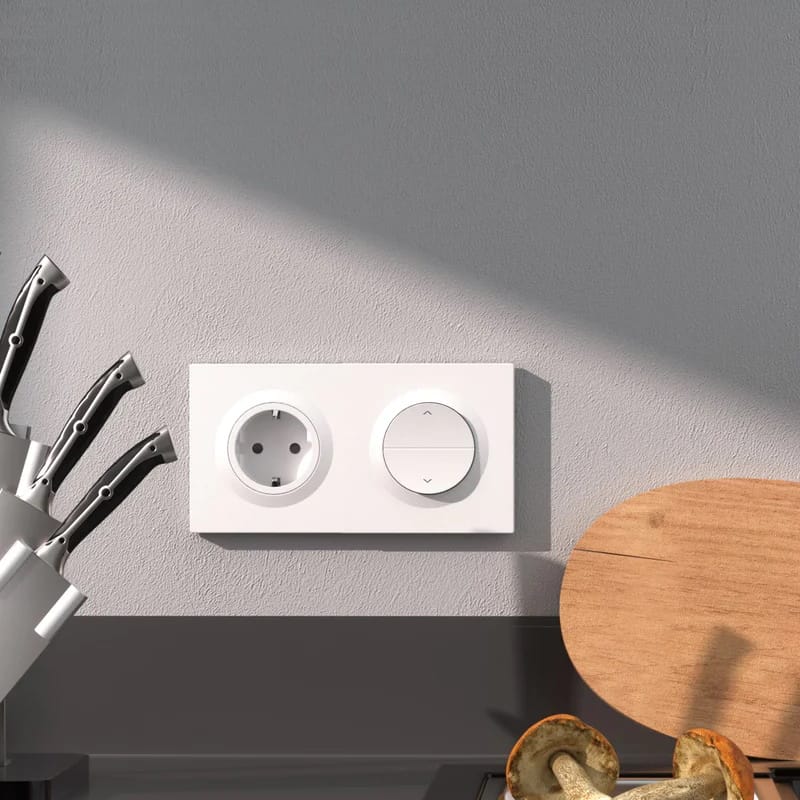

The device is fully compatible with Fusion series frames (including Orb-2Gang and Orb-3Gang). You can freely combine the socket with other switches from the same product line, maintaining a consistent, modern look for the entire wall installation in your home.
Wiring instructions and safety
Due to the fact that the maximum operating current of the wall socket is 16A, you must strictly ensure the proper selection of wires during installation. The diameter of the neutral wire, phase wire, and protective wire connected to the socket must be at least 2,5 mm².
Technical specification
- Product name: Traditional wall socket (without smart features)
- Manufacturer / Series: SONOFF / Fusion
- Model: WS01STPF-E
- Power parameters: 100-250V~ 50/60Hz, 16A Max
- Housing material: Flame-retardant PC (Polycarbonate)
- Dimensions: 86 x 86 x 42,5 mm
- Operating temperature: -10°C ~ 40°C
- Operating humidity: 5% ~ 95% relative humidity (non-condensing)
Package contents

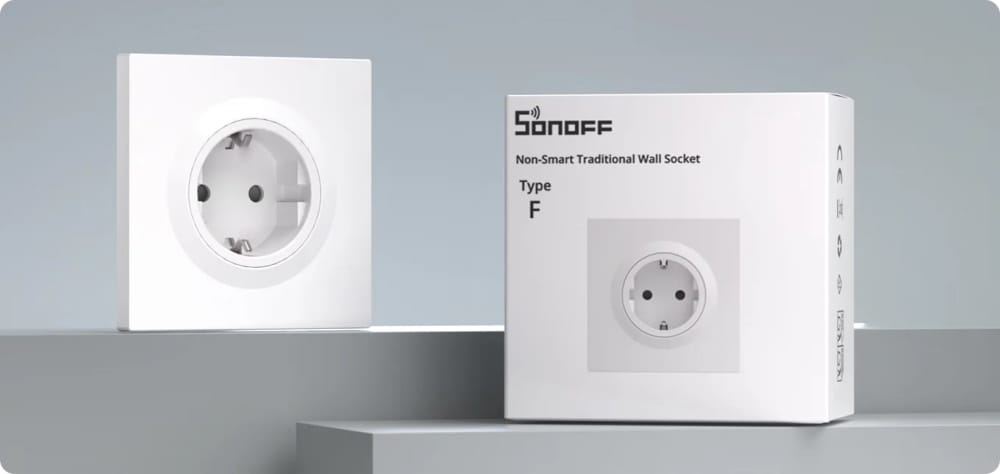

- SONOFF Fusion wall socket (WS01STPF-E)
- Mounting screws
- Quick start guide
