Zigbee PIR motion sensor 3.0 Sonoff SenseGuard Motion Gen2 SNZB-03PR2
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

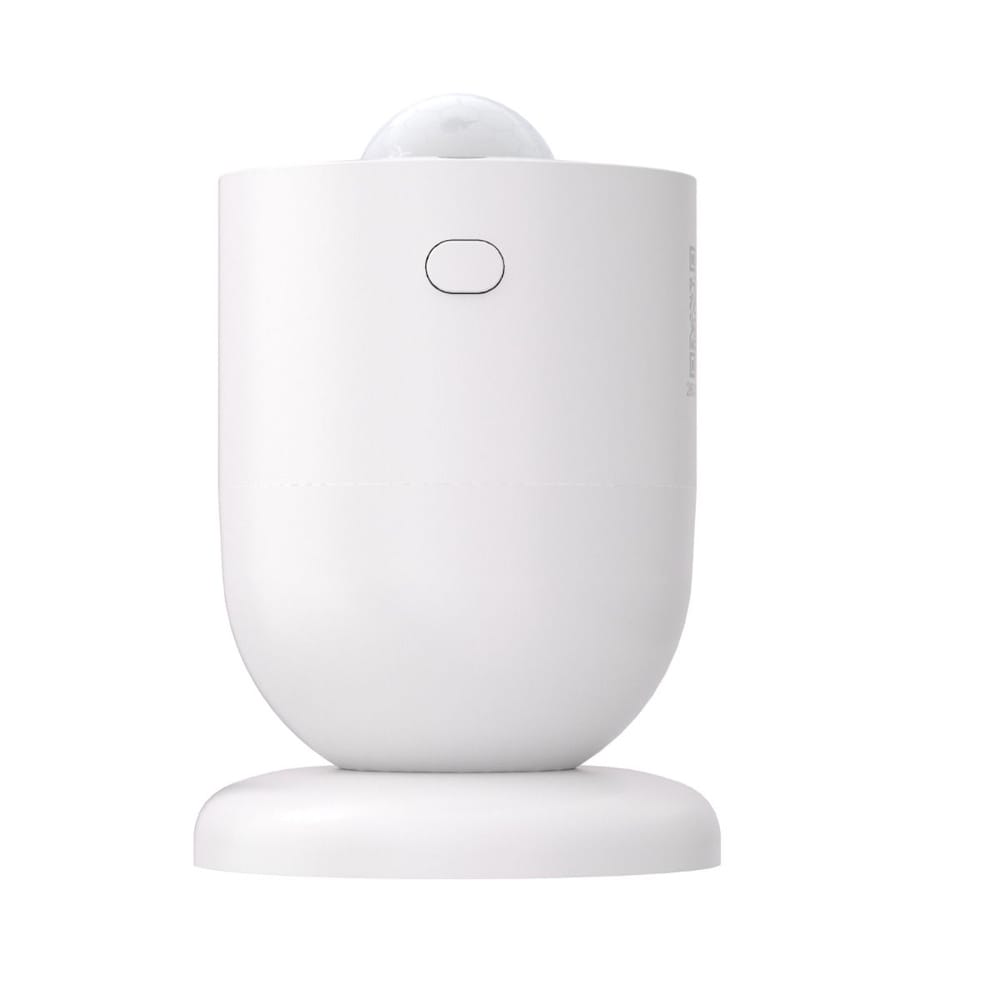

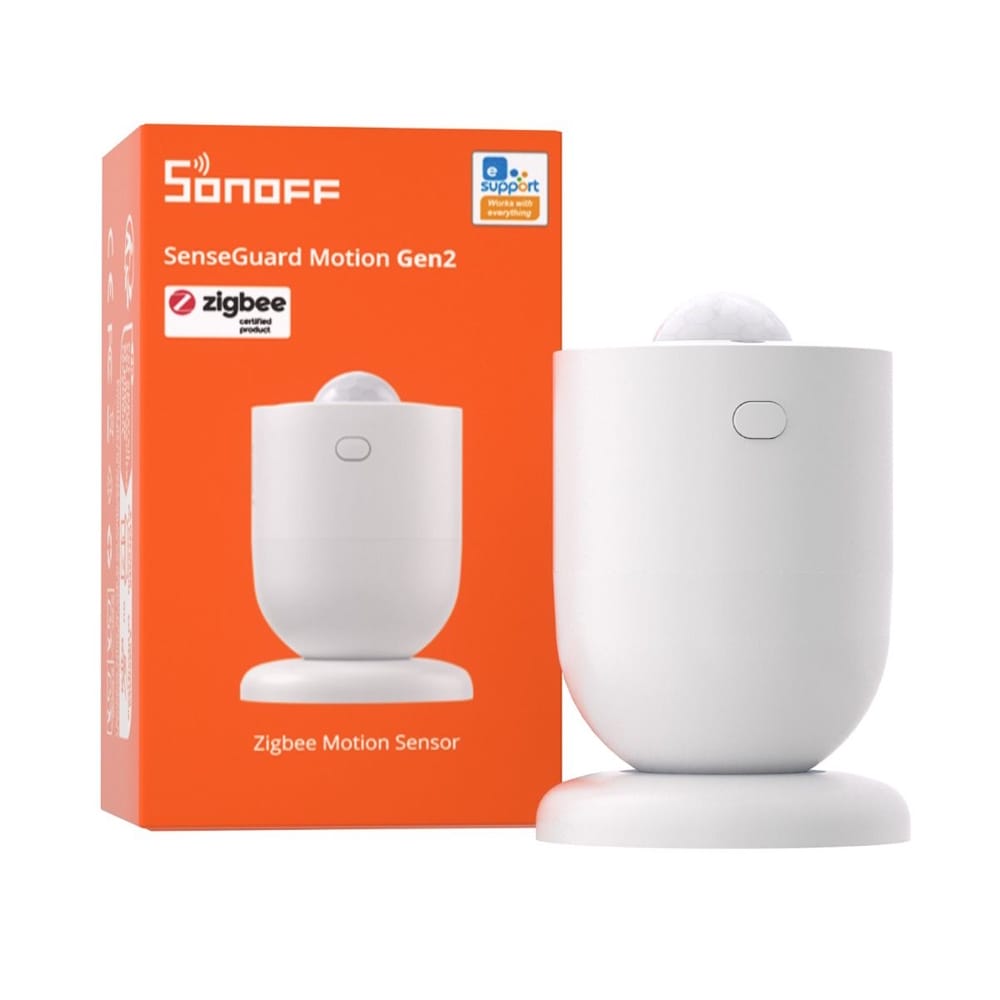

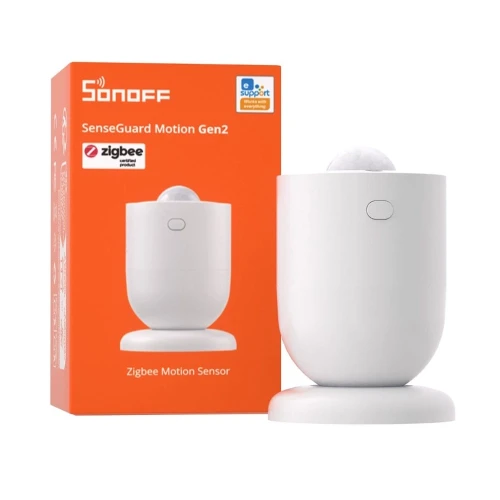

Zigbee PIR motion sensor 3.0 Sonoff SenseGuard Gen2 (SNZB-03PR2)
A compact, smart second-generation PIR motion sensor from Sonoff, compatible with the Zigbee 3.0 standard. It features a built-in, independent light intensity sensor and a wide range of adjustments, making it an excellent solution for building a secure and highly automated smart home.
Key features:
- Fast PIR detection with adjustable delay time (from 5 to 60 seconds).
- Independent light intensity sensor (Lux) enabling the creation of precise automations.
- Wide detection angle of 120° at a distance of up to 6 meters.
- Flexible mounting and a rotating head that helps avoid false alarms from pets.
- Energy efficiency and operation for up to 3 years on a single CR2477 battery.
- Wireless communication based on the stable Zigbee 3.0 standard.
Instant detection with adjustable delay
The device registers motion within just 3 seconds of an event occurring. Furthermore, the interval between consecutive detections can be configured in the range from 5 to 60 seconds. This function prevents false activations and allows for the creation of smarter, energy-efficient automation scenarios.
Independent light measurement and seamless night lighting
The sensor is equipped with a module that provides significantly higher accuracy in detecting light intensity. Thanks to the built-in calibration option and the storage of lighting history from the last 6 months, the device reacts precisely to changes in the environment, which is perfect for controlling night lighting in the home.
Reliable protection and threat notifications
When the system detects unwanted motion, it can instantly trigger security scenarios: turn on the gateway alarm siren, send a push notification to the mobile app, or start recording on a compatible camera. You only need to configure it once for your home to protect itself.
Flexible mounting options
The device's design offers complete installation freedom. You can place it loosely on a shelf, attach it with a magnet to metal surfaces, or stick it using the included tape. The adjustable head allows for easy aiming of the sensor zone in the desired direction.
Easy integration with open platforms
Based on the recognized Zigbee 3.0 standard, the module easily connects and communicates with a wide range of gateways and Smart Home systems from other manufacturers.
Technical specification
- Series: SenseGuard Series
- Model: SNZB-03PR2
- Microcontroller (MCU): TLSR8656
- Power supply: 3V (CR2477 battery)
- Communication protocol: Zigbee 3.0 (IEEE802.15.4)
- Pairing time: 180 s
- Wireless range: up to 100 m (in open space)
- Detection angle: 120°
- Detection range: up to 6 m
- Intended use: For indoor use
- Operating temperature: -10°C ~ 60°C
- Operating humidity: 5-95% RH (non-condensing)
- Color: White
- Dimensions: 44 x 44 x 65 mm
- Net weight: 42,7 g (including battery)
- Housing material: PC
- Certificates: CE / FCC / RoHS
Package contents
- Sonoff SNZB-03PR2 motion sensor with battery
- Mounting accessories (double-sided tape, screws)
- User manual
Note: A compatible Zigbee 3.0 gateway (hub) is required for the sensor to function properly (not included).
Frequently Asked Questions (FAQ)
- What is the sensor's operating range and response time?
The sensor detects motion from a distance of up to 6 meters and features a horizontal field of view of approximately 120°. It is ideal for corridors, hallways, or entrances. The response time is very fast – it can trigger assigned actions in the system within just 5 seconds. - How to use the built-in light sensor?
The device allows you to set a specific light value (lux) as a condition to trigger a scene, enabling, for example, automatic light activation after dusk. You can also combine light and motion detection, gaining a system that turns on the light when it is dark and motion is detected. - How to mount the sensor?
The sensor is designed for flexible mounting. It has a magnetic mount, can be screwed on, or stuck with double-sided tape. With dedicated accessories, flush mounting is also possible. - Can pets cause false alarms?
The device operates based on passive infrared (PIR), which reacts to temperature changes. Pets with a body temperature similar to humans (e.g., dogs and cats) may trigger it, but the rotating head allows you to easily change the detector's viewing angle and avoid the main activity zones of pets.
