mmWave presence sensor 24GHz Zigbee 3.0 Sonoff SNZB-06P24
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

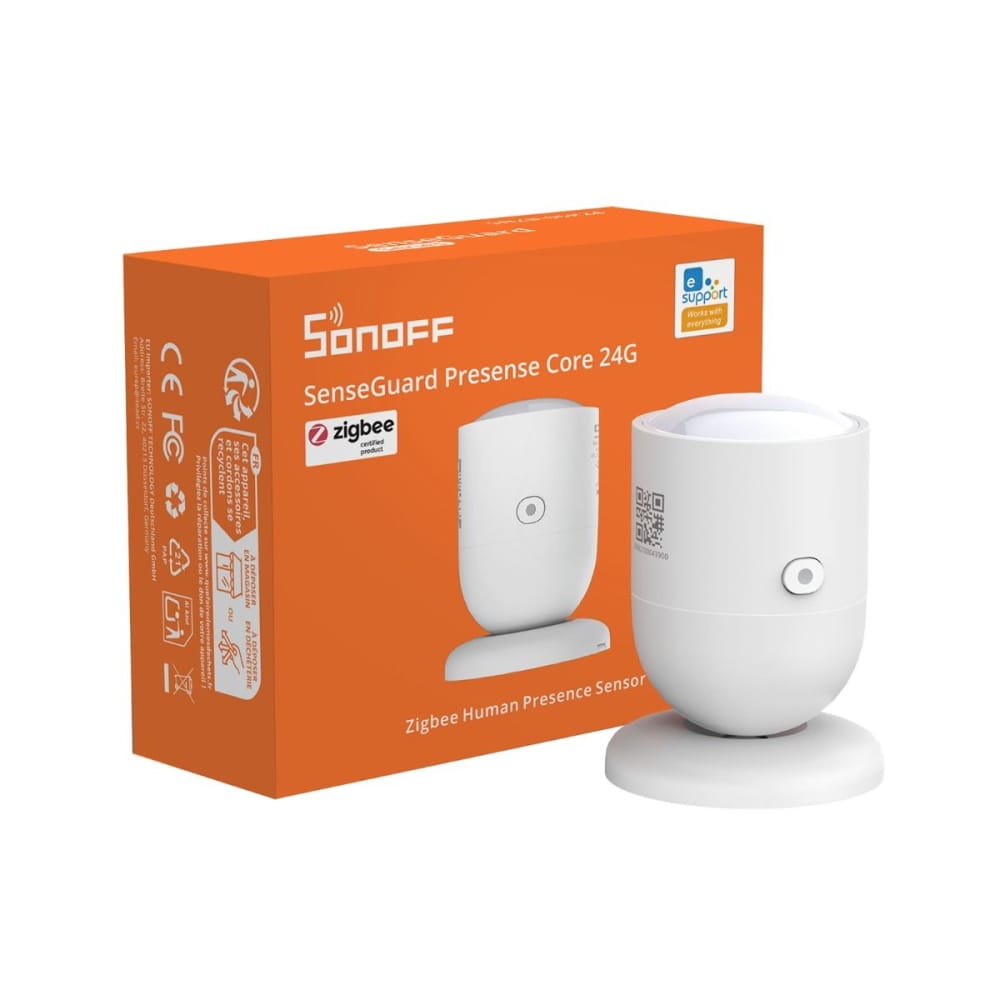

mmWave presence sensor 24GHz Zigbee 3.0 - Sonoff SNZB-06P24
Advanced presence sensor based on mmWave radar technology 24 GHz, capable of precisely detecting the smallest human micro-movements, including breathing. The module communicates via the Zigbee 3.0 protocol, features a built-in light intensity sensor and intelligent interference filtering, making it an ideal choice for advanced Smart Home systems, including Home Assistant and Apple Home.
Key features:
- mmWave radar 24 GHz: precise detection of presence and micro-movements.
- Connectivity: Zigbee 3.0.
- Interference filtering: self-learning algorithm that reduces false alarms from household appliances.
- Configurable detection zones: division of the area into 7 independent zones with a range of up to 4 m.
- Light intensity sensor: possibility to create automations dependent on presence and lighting levels.
- Flexible mounting: magnetic base with a 360° rotating head.
- Compatibility: Home Assistant and Apple Home via Matter Bridge.
Precision of 24 GHz technology and detection calibration
The sensor continuously emits radar waves in the 24 GHz band, which guarantees significantly higher detection efficiency than traditional PIR sensors or older 5,8 GHz radars. After enabling the calibration function, the SNZB-06P24 autonomously learns the movement patterns of stationary objects nearby. This effectively eliminates false alarms generated by fans, operating household appliances, or water pipes.
Zone configuration and lighting automation
In the eWeLink app, the user has full freedom in managing the range. The module allows you to enable and disable individual spatial zones. Combining presence detection with the indicators of the built-in light sensor allows for the creation of advanced energy-saving scenarios – devices turn on only when you are present and natural light is insufficient.
Important usage notes
- The device may not reliably detect people during deep sleep due to the small amplitude of chest movements.
- For a completely motionless person, the highest detection efficiency occurs at a distance of up to 3 meters directly in front of the device.
- Pets may trigger the sensor. If you want to avoid detecting pets, point the device head slightly upwards.
- The interference filtering function applies to stationary objects. If the interfering object, e.g., a fan, changes position, recalibration must be performed.
Simple installation
The set includes everything needed for quick assembly: a stand, USB cable, screw set, and user manual.
Technical specification
- Model: SNZB-06P24.
- MCU microcontroller: TLSR8656.
- Power supply: 5V / 0,5A, USB Type-C connector.
- Wireless communication: Zigbee 3.0, IEEE 802.15.4.
- Communication range: up to 100 m in an open area.
- Maximum operating altitude: up to 2000 m above sea level.
- Operating temperature: from -10°C to 60°C.
- Environmental humidity: 0-90% RH, non-condensing.
- Housing material: PC + ABS.
- Color: white.
- Overall dimensions: 44,2 x 44,2 x 59 mm.
- Net weight: 34,5 g.
Set contents
- Sonoff SNZB-06P24 presence sensor.
- Adjustable magnetic base.
- Set of mounting elements.
To operate, the sensor requires:
- 5V power adapter with USB-C output.
- Compatible Zigbee 3.0 gateway, e.g., Sonoff Zigbee Bridge Pro, Sonoff NSPanel Pro, or Sonoff iHost.
