12.3" IPS Display 720×1920 DSI Interface Capacitive Touch Panel for Raspberry Pi 5 / CM5

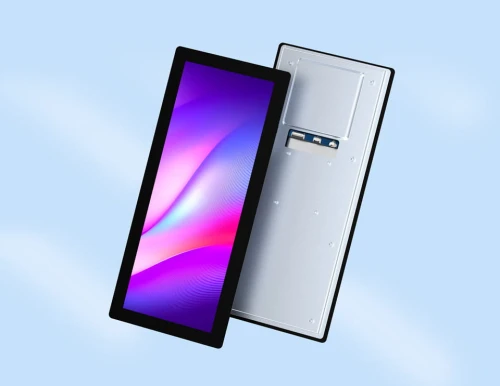

12.3-inch DSI Touchscreen 720×1920 IPS - Capacitive, Toughened Glass, Optical Bonding

A high-quality 12.3-inch touchscreen with an IPS panel, offering a resolution of 720×1920 pixels. Thanks to the DSI interface, it provides a smooth refresh rate of up to 60Hz. The display uses Optical Bonding technology, which guarantees exceptional image quality, and the capacitive touch panel made of 6H toughened glass supports up to 10 touch points. It is an ideal solution for advanced projects with Raspberry Pi 5 and other platforms where precision and reliability are crucial.

Key Features:

• 12.3-inch touchscreen with 10-point capacitive touch
• IPS panel with a hardware resolution of 720×1920 pixels
• Optical Bonding technology for a clearer image and better durability
• Touch panel made of toughened glass with a hardness of up to 6H
• DSI interface providing a refresh rate of up to 60Hz

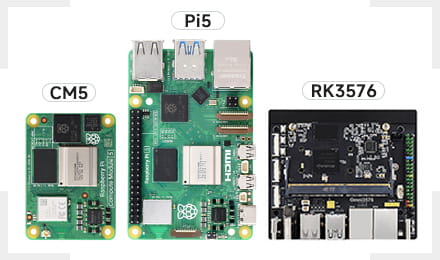

• Compatibility with Raspberry Pi 5 / CM5 (Raspberry Pi OS) and RK3576 (Buildroot, Debian, Android)
• Software-controlled backlight brightness adjustment
• Fully metal back cover with passive cooling
• Slim design – only 11.6 mm thick thanks to the integration of the driver into the FPC cable

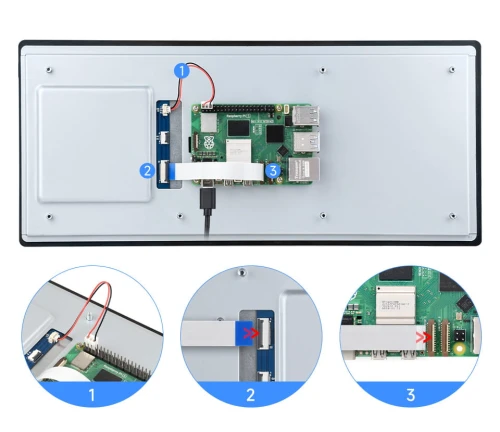

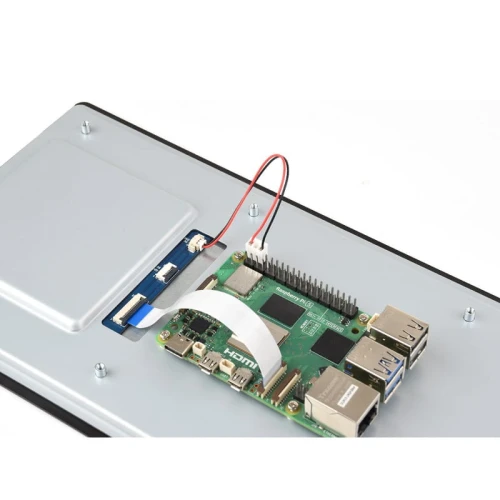

Connection Example with Raspberry Pi 5

Connect the display using the included FFC cable. Power is supplied through the Raspberry Pi's 5V GPIO pins.

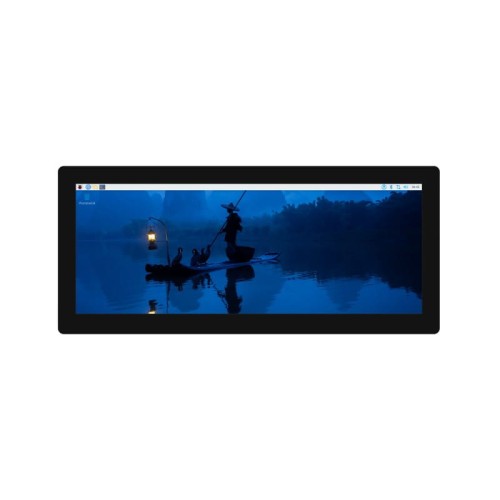

IPS Display Panel

Excellent display performance with 178° wide viewing angles, ensuring vibrant and consistent colors regardless of the perspective.

Software Brightness Adjustment

10-Point Touch and Optical Bonding

The panel supports up to 10 touch points (depending on the operating system) and is protected by 6H toughened glass. Optical Bonding technology eliminates the air gap between the touch panel and the display, resulting in better image quality and dust resistance.

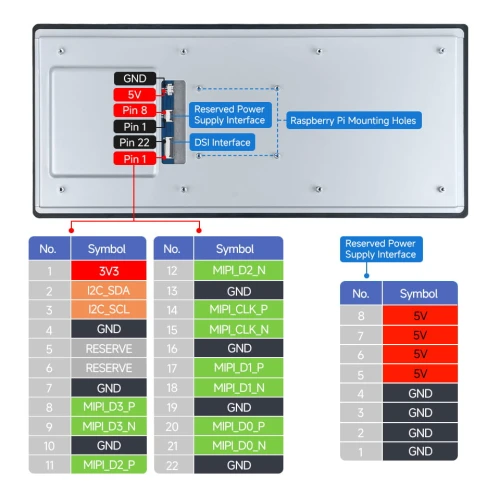

Interface Description

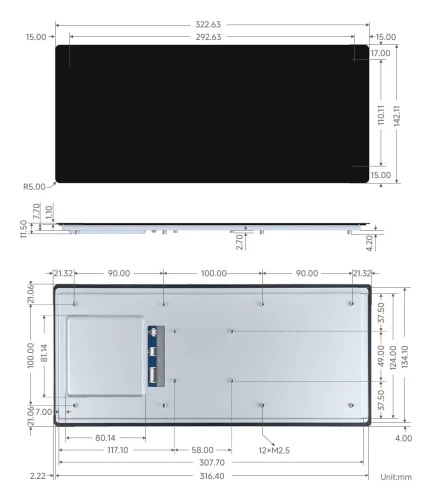

Dimensions

Technical Specification:

Package Contents

Wiki: https://www.waveshare.com/wiki/12.3-DSI-TOUCH-A
