Display 10.1" IPS 800x1280 DSI interface Capacitive Touch Panel
Price:
€61.08
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
Vendor:
![WaveShare]()
ELTY - Official Waveshare Distributor
Product code:
10.1-DSI-TOUCH-A Waveshare 30052

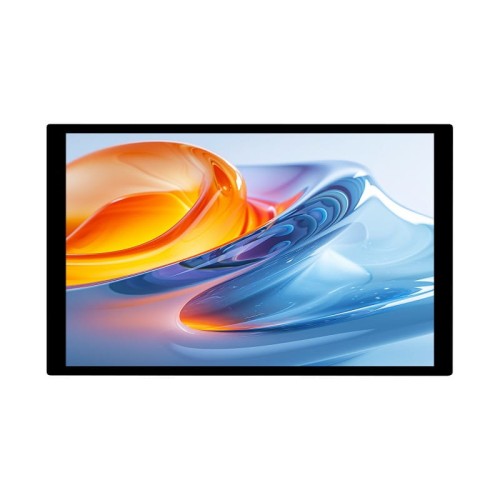

The Waveshare 10.1-DSI-TOUCH-A is a high-quality touch display designed for use with the Raspberry Pi.
The DSI interface provides a fast and stable connection, leaving the HDMI and GPIO ports free.
Key features
- Screen diagonal: 10.1"
- Resolution: 800x1280 pixels
- Panel: IPS with wide viewing angles
- Touch screen: capacitive, support up to 10 touch points
- Surface: tempered 6H hardness glass with anti-fingerprint coating
- Connection: DSI interface, power supply via GPIO
- Compatibility: Raspberry Pi 5 / CM5 / 4B / CM4 / 3B+ / 3A+ / 3B / CM3+ / CM3
- Refresh rate: up to 60 Hz
- Backlight control: brightnesscontrollable via software

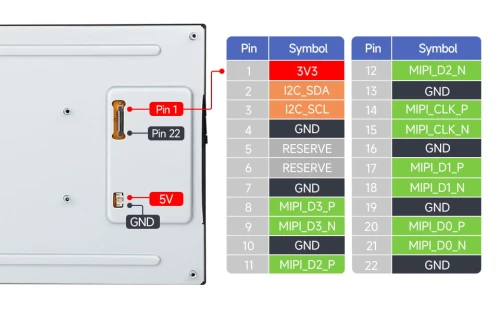

Display interface
Even thinner and space-saving - the total thickness of the display is just 10.8 mm.

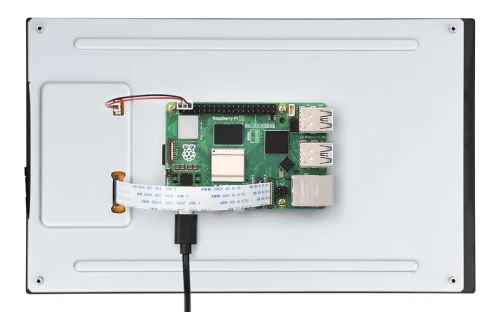

Example of connection to Raspberry Pi 5

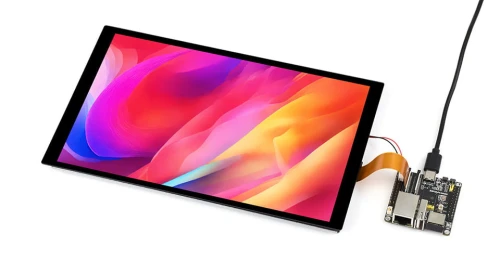

Operation with ESP32-P4
Dimensions
Kit contents
- 10.1-DSI-TOUCH-A x1
- MIPI-DSI-Cable-12cm
- MX 1.25 2PIN to 2.54 3PIN
- FFC 22PIN cable ~200mm
- Screws
Wiki: https://www.waveshare.com/wiki/10.1-DSI-TOUCH-A
