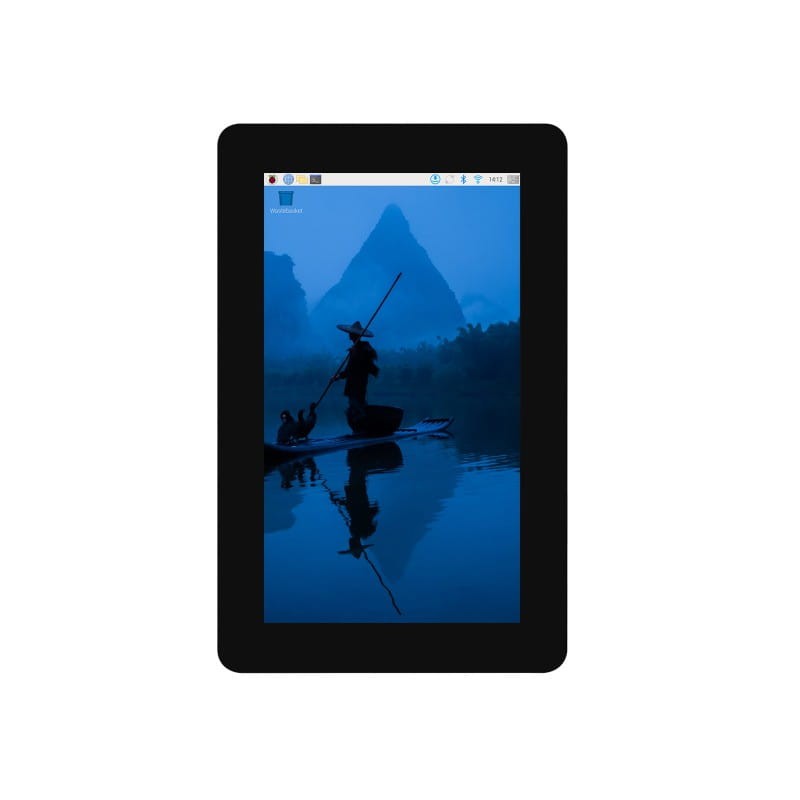

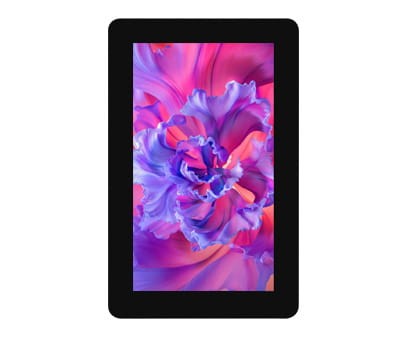

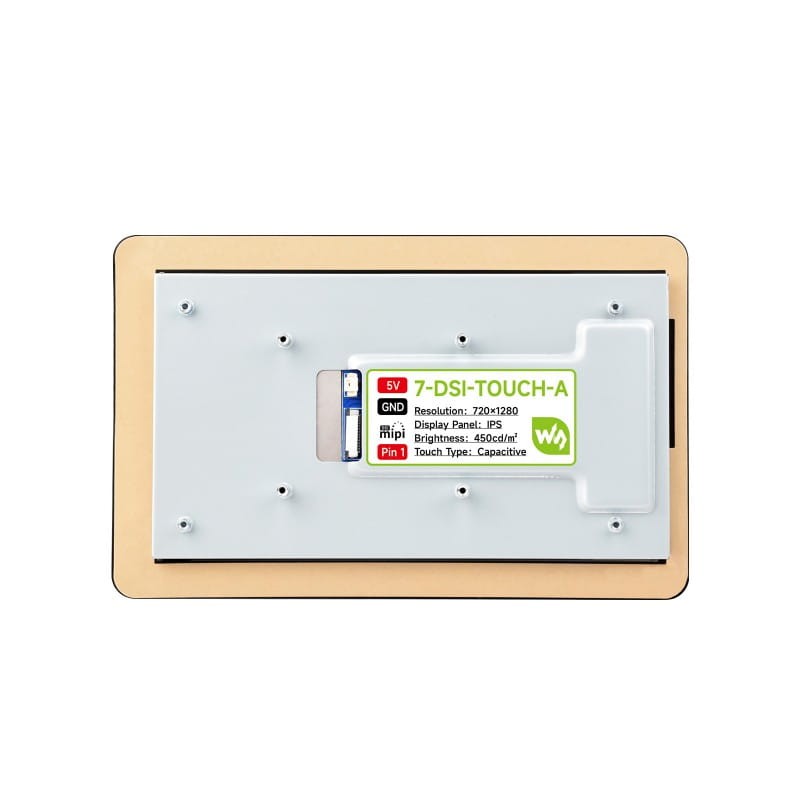

The Waveshare 7-DSI-TOUCH-A is a high-quality touchscreen display designed for use with the Raspberry Pi.
The DSI interface provides a fast and stable connection, leaving the HDMI and GPIO ports free.
Key features
- Screen diagonal: 7 inches
- Resolution: 720 x 1280 pixels
- Panel: IPS with wide viewing angles
- Touch screen: capacitive, support up to 10 touch points
- Surface: tempered 6H hardness glass with anti-fingerprint coating
- Connection: DSI interface, power supply via GPIO
- Compatibility: Raspberry Pi 5 / CM5 / 4B / CM4 / 3B+ / 3A+ / 3B / CM3+ / CM3
- Refresh rate: up to 60 Hz

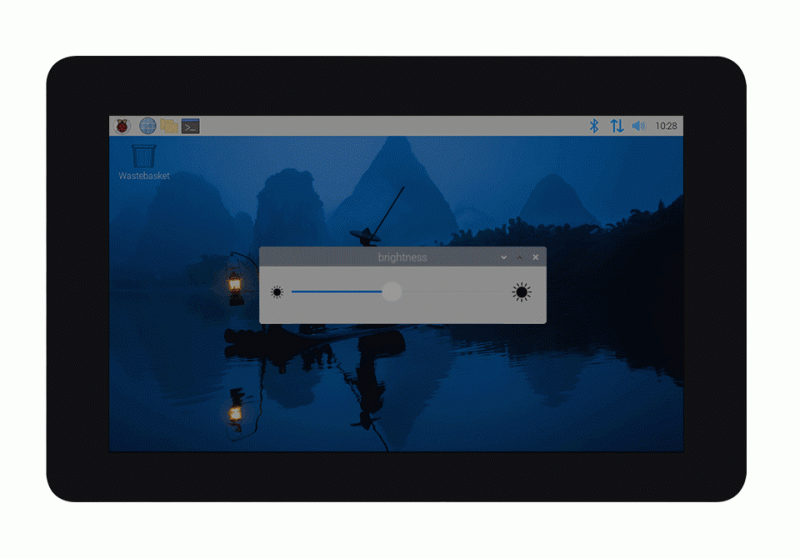

- Backlight control: brightnesscontrollable via software

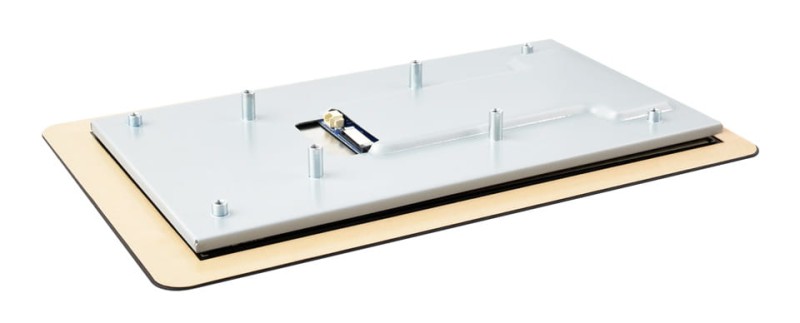

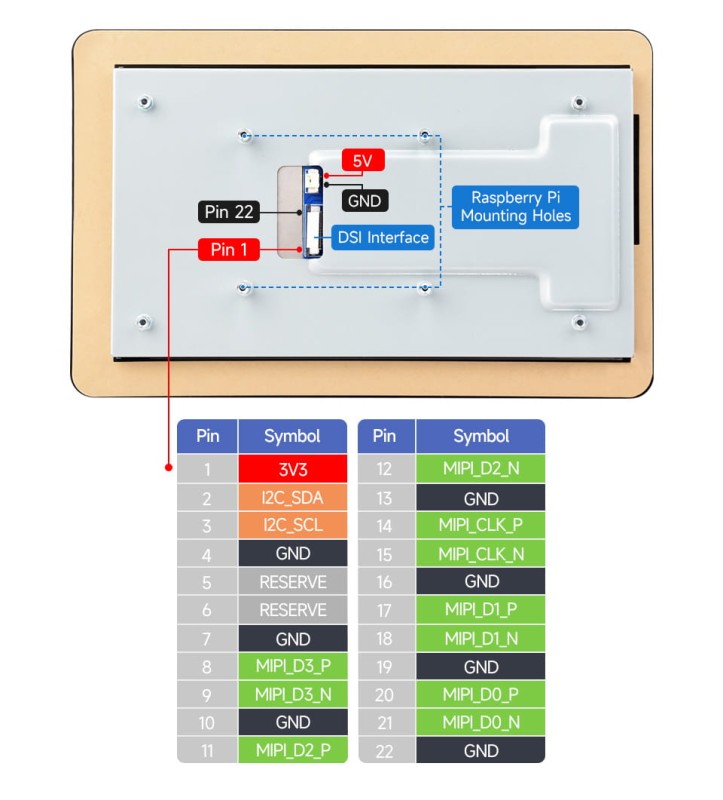

Display interface

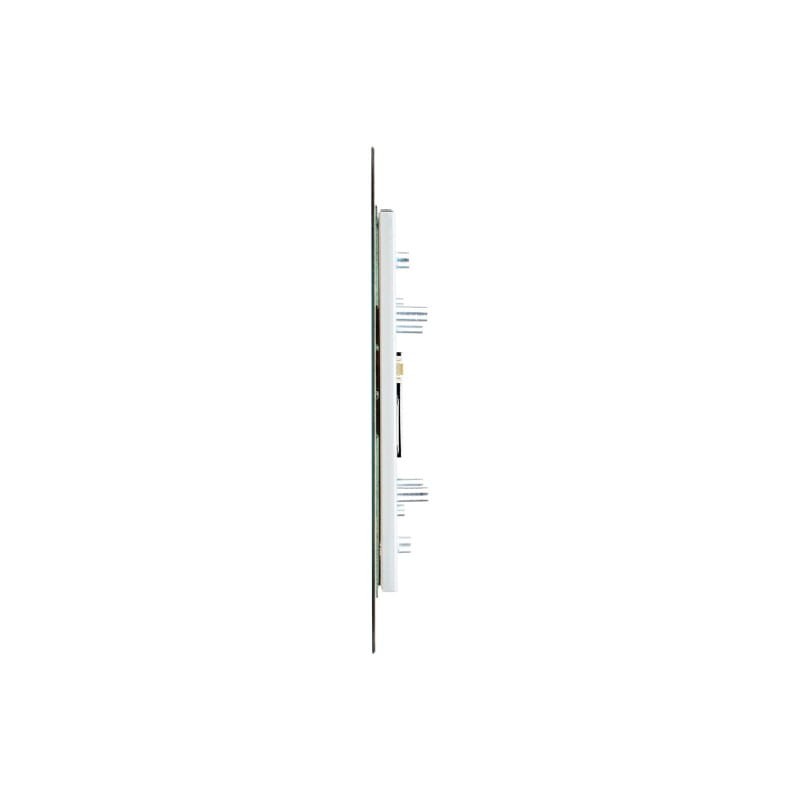

Even thinner and space-saving - the total thickness of the display is just 9.3 mm.

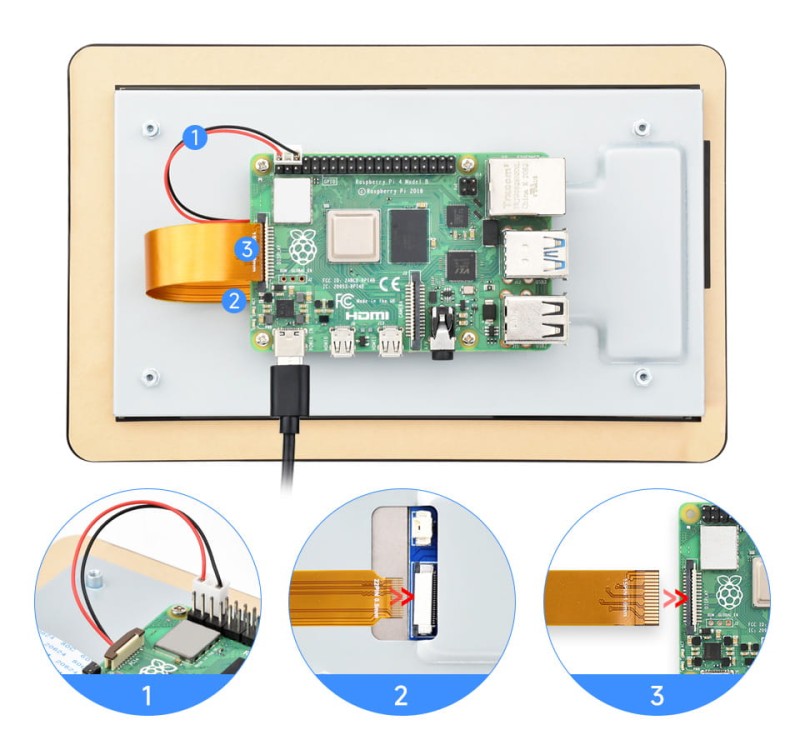

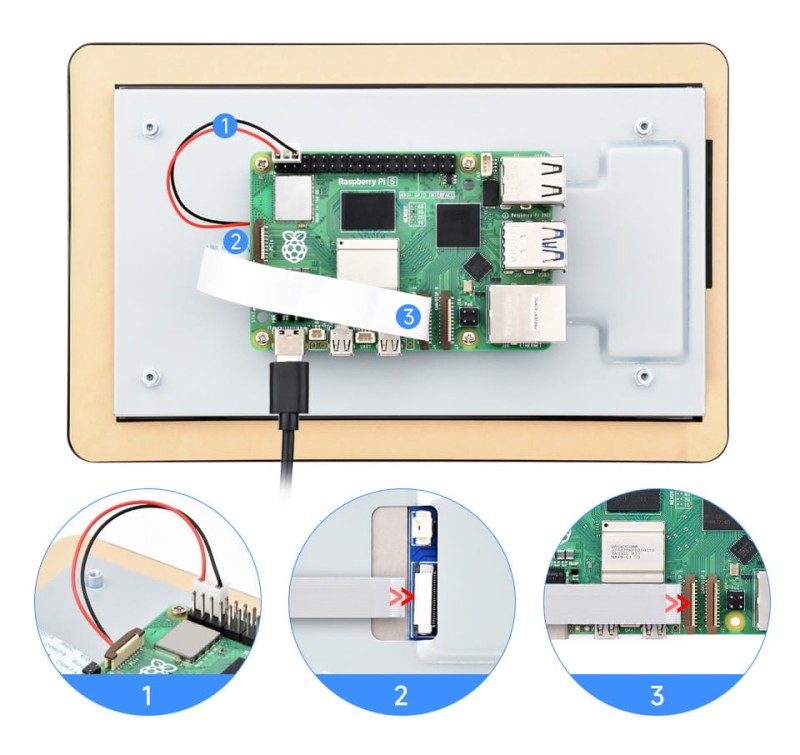

Example of connection to Raspberry Pi 5 and Raspberry Pi 4

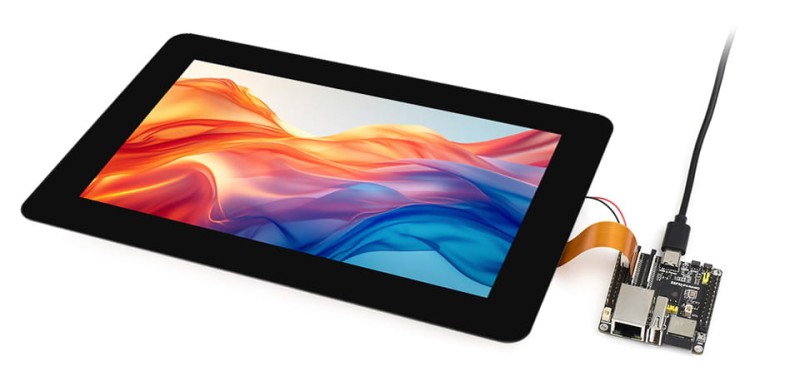

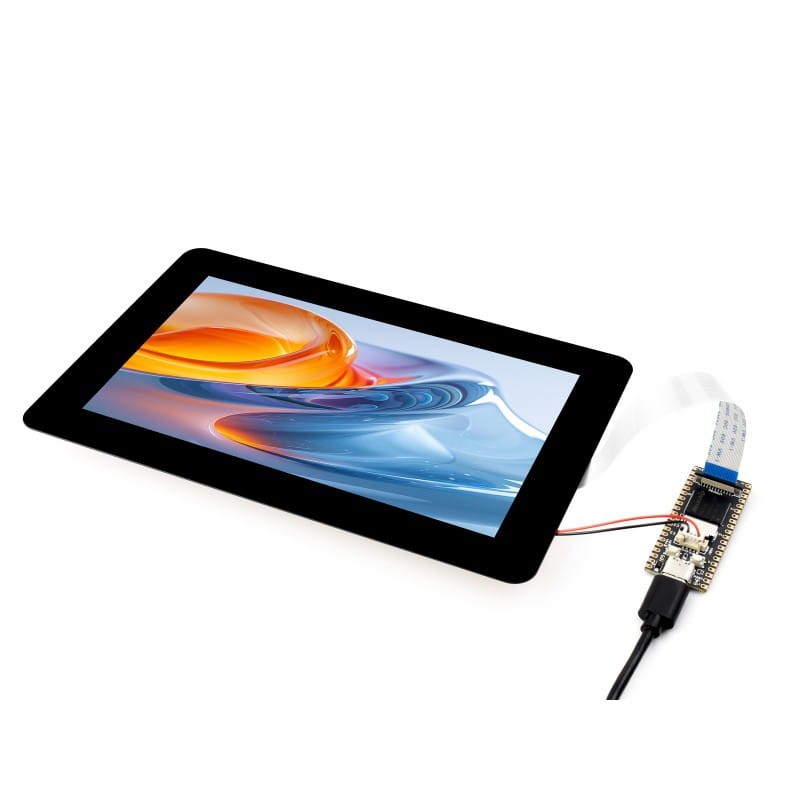

Operation with ESP32-P4

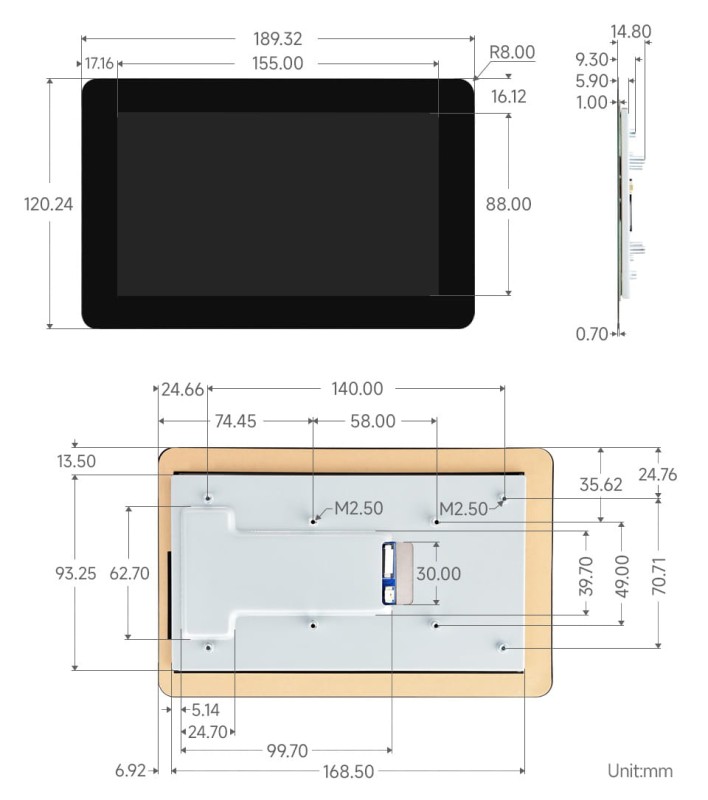

Dimensions

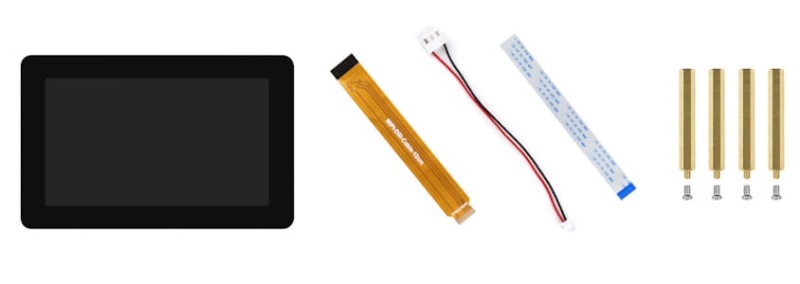

Kit contents
- 7-DSI-TOUCH-A x1
- MIPI-DSI-Cable-12cm
- MX 1.25 2PIN to 2.54 3PIN
- FFC 22PIN cable ~200mm
- Screws
Wiki: https://www.waveshare.com/wiki/7-DSI-TOUCH-A
