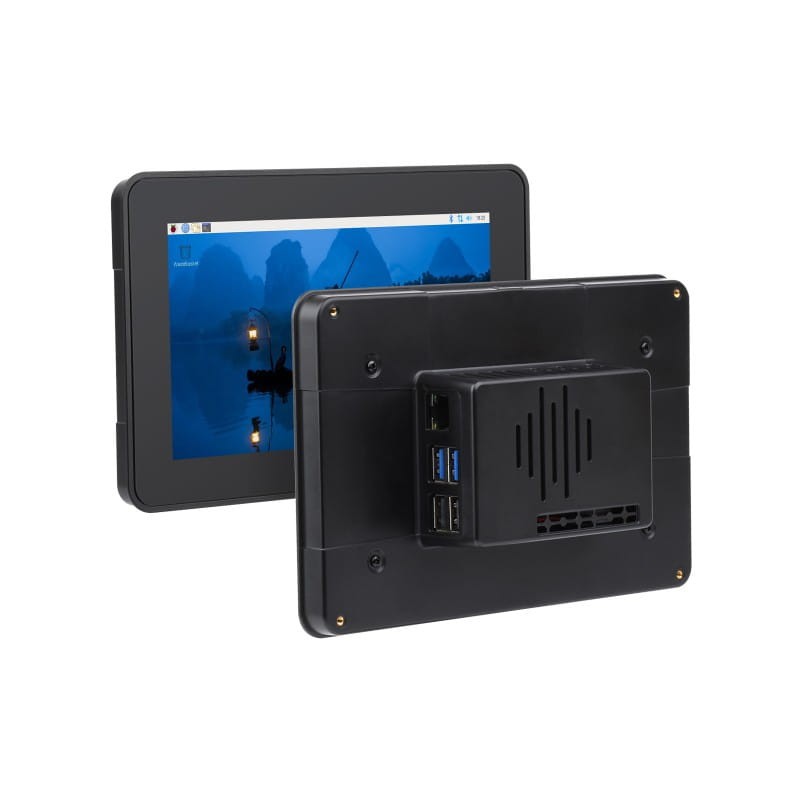

7" IPS 720x1280 Display DSI Interface Capacitive Touch Panel with Case for Raspberry Pi 5
Regular price:
product unavailable

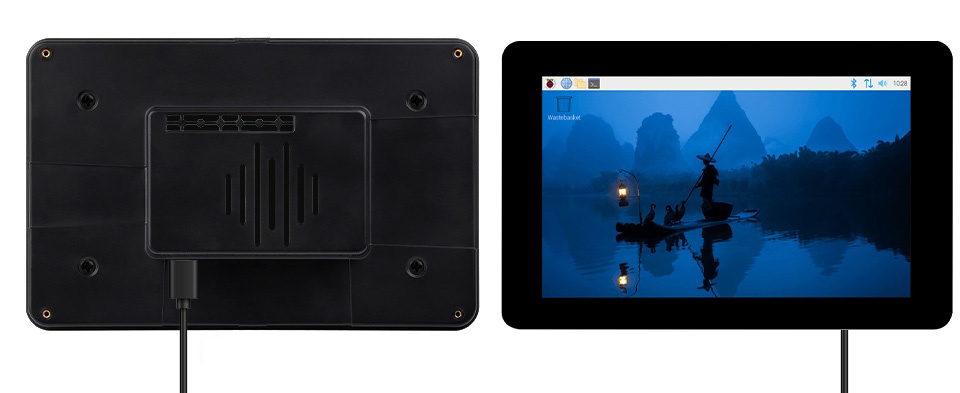

Waveshare 7-DSI-TOUCH-A WITH CASE – 7” Touch Display with Case for Raspberry Pi 5

Key Features
- Screen Diagonal: 7 inches
- Resolution: 720 × 1280 pixels
- Panel: IPS – wide viewing angles, vibrant colors
- Touch: Capacitive, up to 10 points
- Glass: 6H tempered glass with anti-fingerprint coating
- Interface: MIPI-DSI, power via GPIO
- Compatibility: Raspberry Pi 5
- Refresh Rate: up to 60 Hz
- Backlight Adjustment: software-controlled

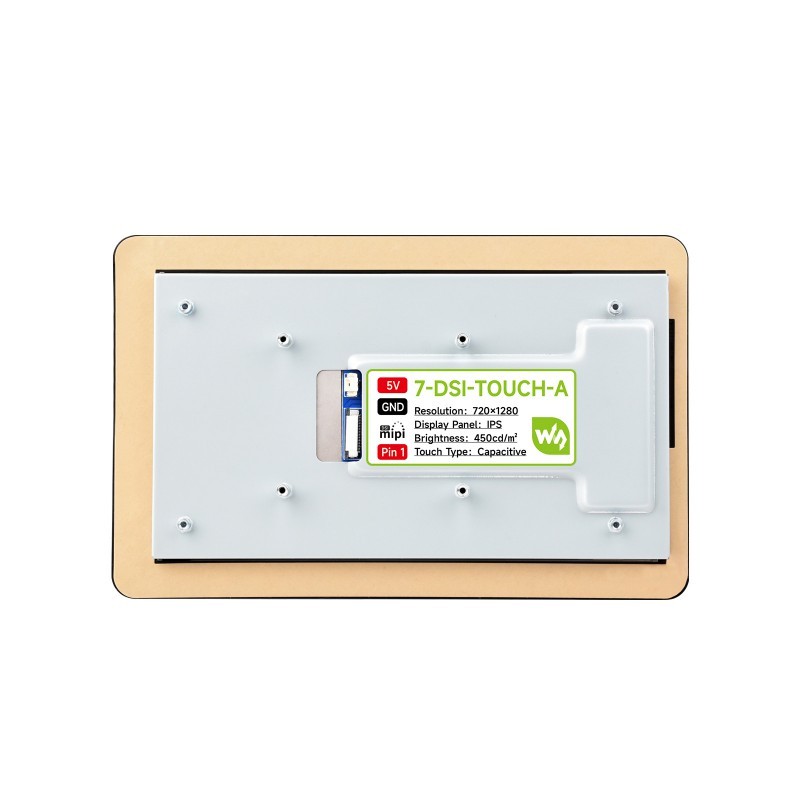

Display Interface

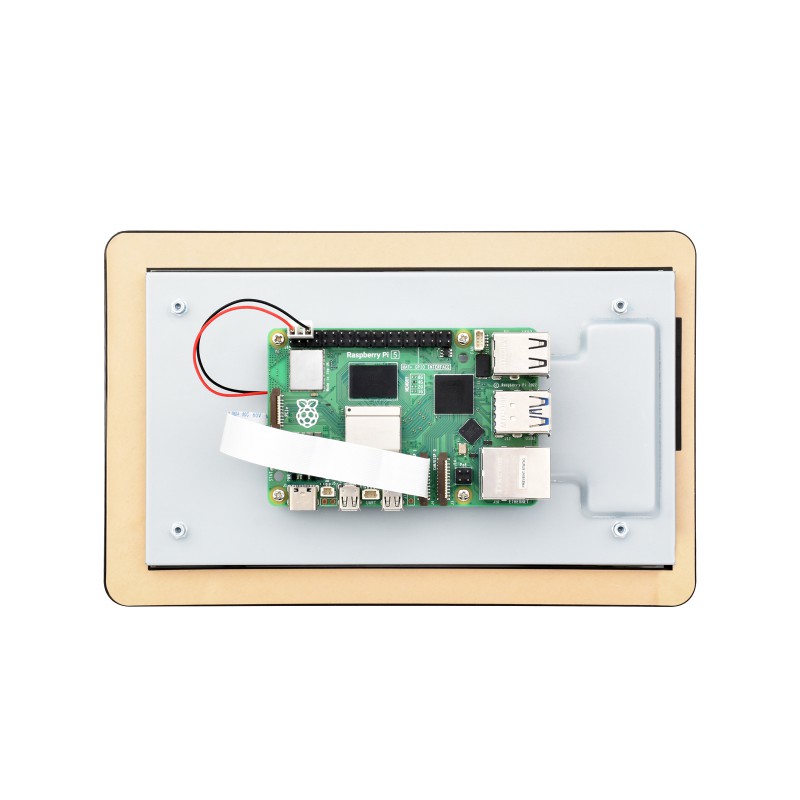

Assembly with Raspberry Pi 5

Precise Connector Cutouts


Assembly Instructions
1. Attach the silicone button cap inside the case.
2. Connect the case to the screen using PM2.5 × 4 mm screws.

*Raspberry Pi board and LCD display are not included.

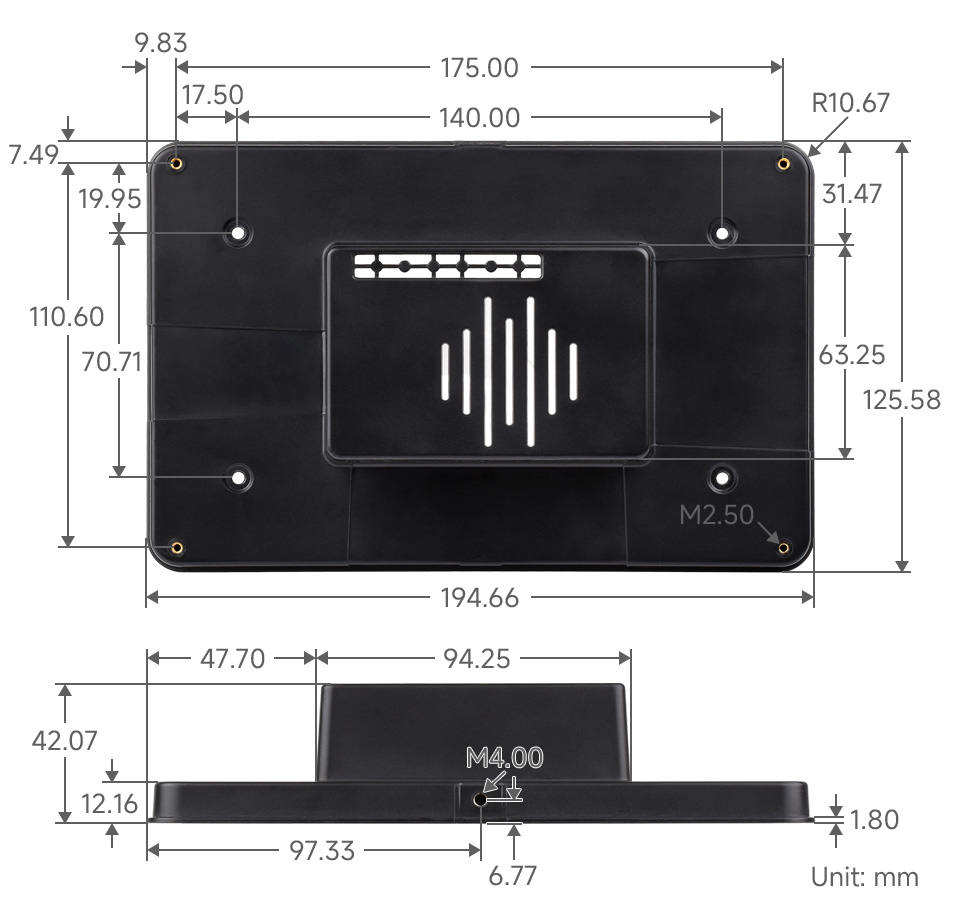

Dimensions

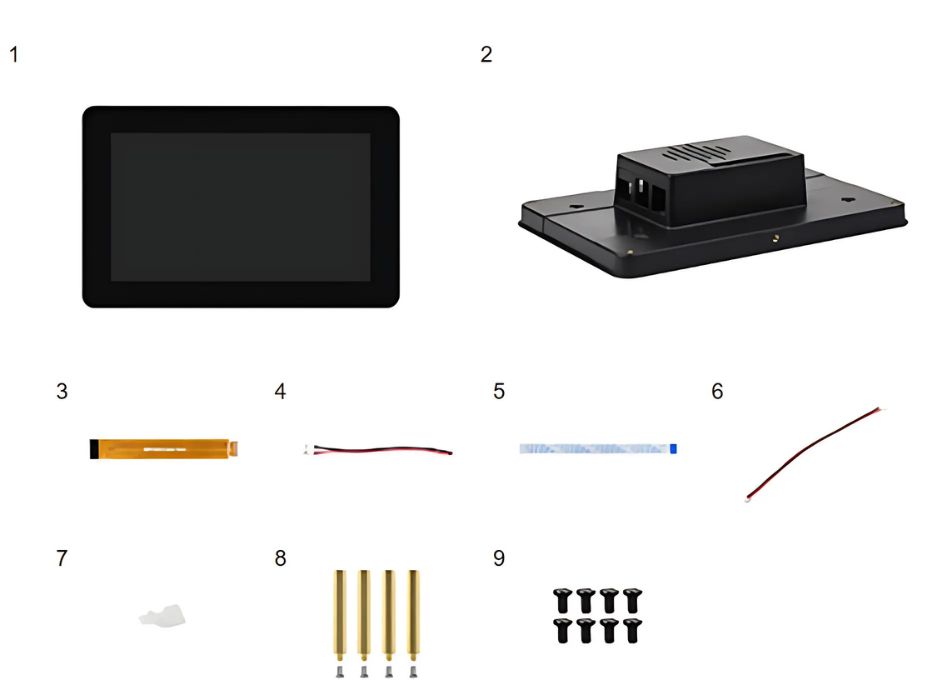

Package Contents
- 7-DSI-TOUCH-A Display ×1
- PI5-CASE-TD2 Case
- MIPI-DSI Cable (12 cm)
- MX 1.25 2-pin to 2.54 3-pin Adapter
- FFC 22-pin Cable (~200 mm)
- MX 1.25 2-pin to MX 1.25 4-pin Adapter
- Button
- Mounting stands
- Mounting screws

Wiki: 7-DSI-TOUCH-A
