7-inch Industrial HMI All-in-one Display for Raspberry Pi 4/5 - 720x1280, Dual 4K HDMI
A complete HMI (Human-Machine Interface) solution integrating a 7-inch DSI touchscreen with a Raspberry Pi 4 or 5 into a single, robust aluminum alloy enclosure. The module offers dual 4K HDMI output, 10-point capacitive touch, and a high-quality IPS panel with Optical Bonding technology. Thanks to passive cooling, flexible power options, and VESA mounting, it is an ideal platform for industrial applications, embedded systems, and advanced DIY projects.
Key Features:
- 7-inch DSI touchscreen with 10-point capacitive touch
- IPS panel with a hardware resolution of 720×1280 pixels
- All-in-one design for mounting a Raspberry Pi 4 or 5 inside the enclosure
- Dual 4Kp60 HDMI display output for connecting additional monitors
- Optical Bonding technology for a clearer image and reduced reflections
- 6H toughened glass with an anti-fingerprint (AF) coating
- DSI interface providing a refresh rate of up to 60Hz
- Support for Raspberry Pi OS (Bookworm) without additional drivers
- Aluminum alloy enclosure with efficient, passive cooling
- Two power supply methods: via USB-C port or a screw terminal
- Compatibility with the VESA mounting standard

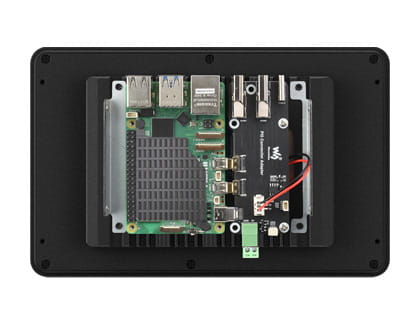

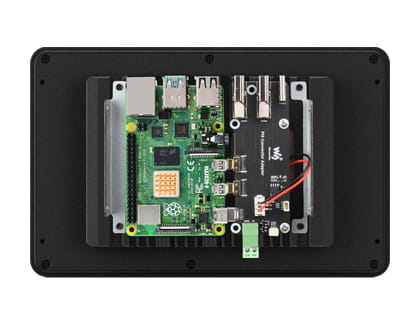

Assembly Example for Raspberry Pi 4 and Raspberry Pi 5
The kit includes dedicated accessories for easy assembly of both Raspberry Pi versions.

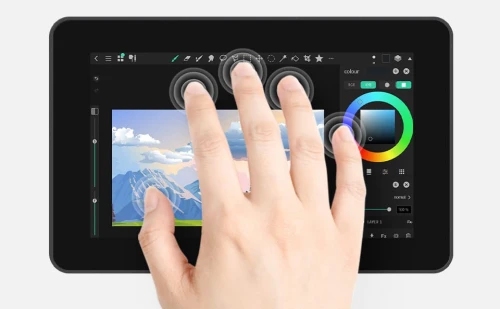

10-Point Touch and Image Quality
The panel supports up to 10 touch points and is protected by 6H toughened glass with an anti-fingerprint coating. Optical Bonding technology eliminates the air gap between the touch panel and the display, resulting in better image quality and dust resistance.

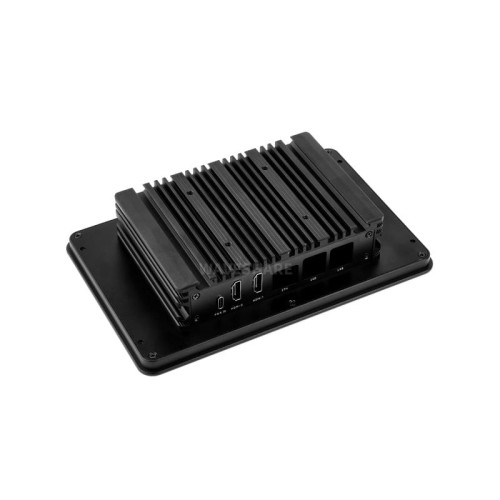

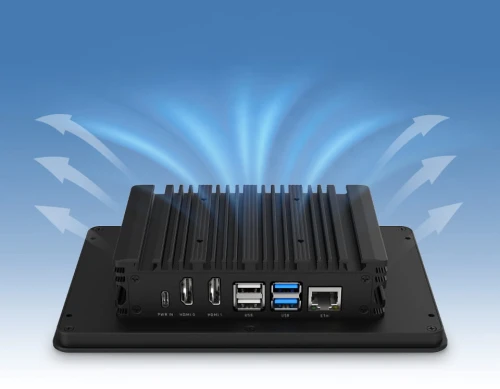

Excellent Passive Cooling
The full metal enclosure acts as a heatsink, efficiently dissipating heat from the Raspberry Pi without the use of fans, ensuring quiet and reliable operation.

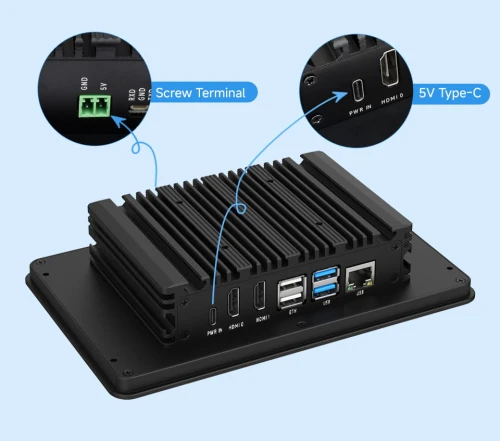

Two Power Supply Methods
The device can be powered via a standard USB Type-C port or an industrial screw terminal, providing flexibility for various applications.

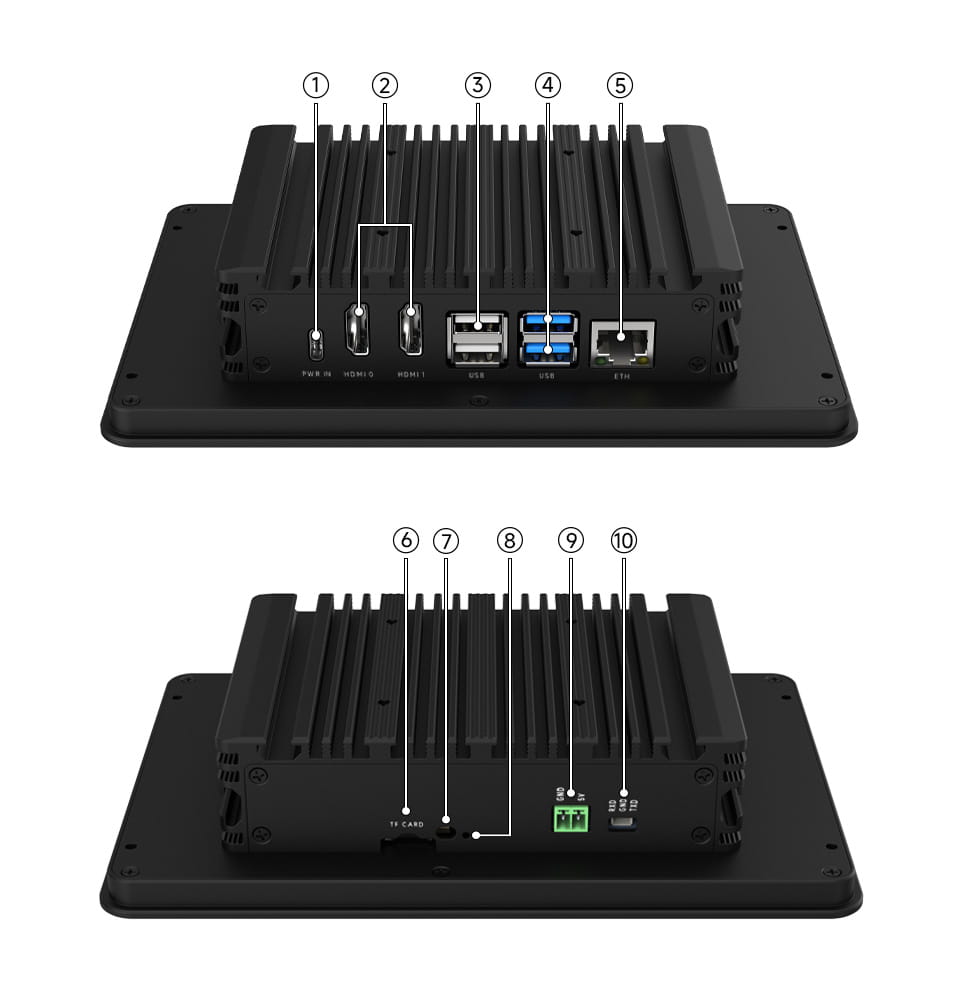

Interface Description
- 5V Type-C power port
- Standard HDMI Interface x 2
- USB2.0 port x 2
- USB3.0 port x 2
- Gigabit Ethernet connector
- TF card slot
- Power button
- Power indicator
- 5V Power supply screw terminal (3.81mm pitch)
- Debugging serial port
Dimensions
Technical Specification:
- Diagonal: 7 inches
- Resolution: 720 × 1280 pixels
- Display Interface: DSI
- Display Panel: IPS
- Viewing Angle: 178°
- Video Outputs: 2x HDMI (4Kp60)
- Touch Type: Capacitive, 10-point
- Touch Panel: 6H Toughened Glass, Optical Bonding, AF coating
- Enclosure: Aluminum alloy
- Cooling: Passive
- Power Supply: USB-C or screw terminal (5V)
- Mounting: Embedded, VESA
- Compatibility: Raspberry Pi 4, Raspberry Pi 5

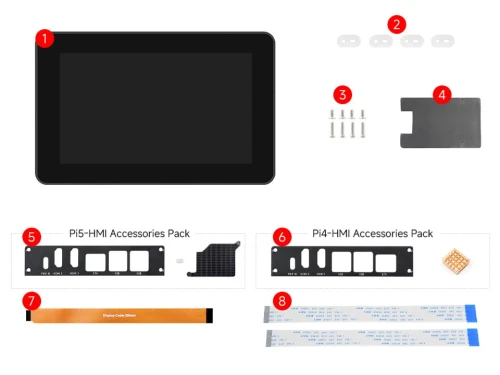

Package Contents
- 7-inch touch display (RPI-HMI-7A) × 1
- Mounting buckles (4 pcs) × 1
- Screws pack × 1
- 5W thermal pad × 1
- Accessory Pack for Pi5:
- Side panel for Pi5 × 1
- Aluminum heatsink × 1
- Silicone button × 1
- Accessory Pack for Pi4:
- Side panel for Pi4 × 1
- Copper heatsink × 1
- Pi5-Display-Cable ~200mm × 1
- 22PIN FFC Cable (2PCS) ~200mm × 1
Wiki: https://www.waveshare.com/wiki/RPI-HMI-7A
