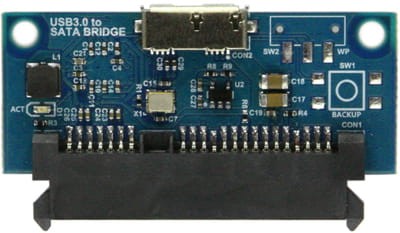

Adapter umożliwiający podłączenie do ODROID-XU4 lub innego urządzenia z portem USB 3.0 dysków 2.5" SATA HDD/SDD, wykonany z użyciem kontrolera Genesis GL3321G. Za pośrednictwem złącza USB3.0 adapter zapewnia również zasilanie dla dysków.
Możliwa jest również praca w trybie USB 2.0 np. z Odroidem C1+ lub C2.
Specyfikacja:
- Wymiary : 48 x 29 x 6 mm (approx., including connector)
- Interfejs : Micro-USB3.0
- Złącze : zgodne z dyskami 2.5" SATA HDD / SSD

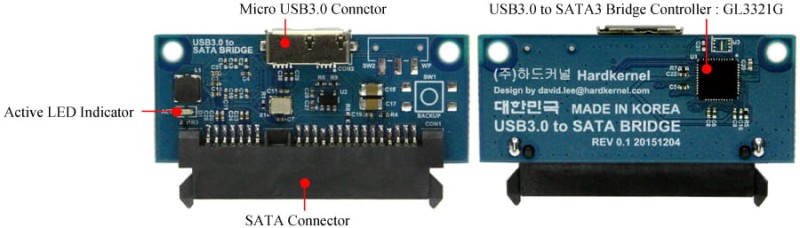

- Kontroller : GL3321G2
PERFORMANCE

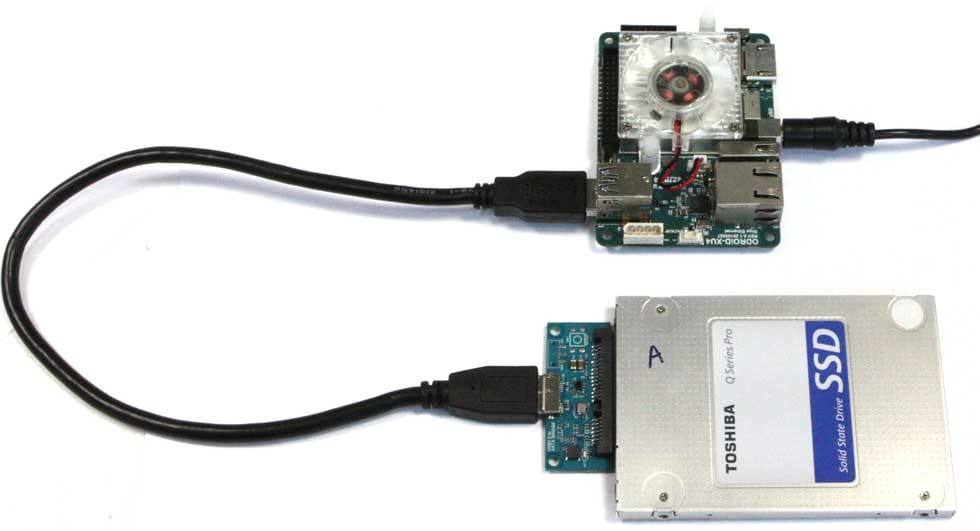

An SSD write and read tests with ODROID-XU4 USB 3.0 on Linux platform in the real world.
Write testdd if=/dev/zero of=test oflag=direct bs=4M count=256256+0 records in256+0 records out1073741824 bytes (1.1 GB) copied, 8.3077 s, 132.4 MB/s
Read testdd if=test of=/dev/null iflag=direct bs=4M256+0 records in256+0 records out1073741824 bytes (1.1 GB) copied, 7.4352 s, 144 MB/s
An SSD write and read tests with ODROID-C1 USB 2.0 on Linux platform in the real world.
Write testdd if=/dev/zero of=test oflag=direct bs=4M count=256256+0 records in256+0 records out1073741824 bytes (1.1 GB) copied, 30.8774 s, 34.8 MB/s
Read testdd if=test of=/dev/null iflag=direct bs=4M256+0 records in256+0 records out1073741824 bytes (1.1 GB) copied, 28.6036 s, 37.5 MB/s

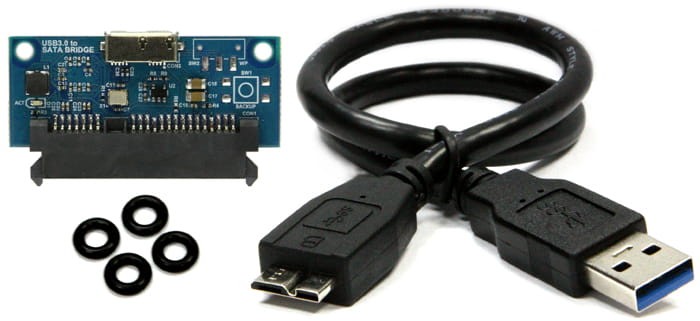

Zestaw zawiera:
- Adapter USB3.0 na SATA
- Kabel Micro USB3.0 ~400mm
