Marsboard RK3066 Dual core ARM Cortex A9 CPU and Quad core Mali400MP4 GPU

Dostępność:: brak towaru
Cena:: 270,00 zł 270.00
Cena netto: 219,51 zł
ilość szt.
dodaj do przechowalni
Ocena:: 4.81
Kod produktu: Marsboard RK3066

Opis

 Dokładny opis:

MarsBoard RK3066. Część 1: Unboxing i Android

MarsBoard RK3066. Część 2: PicUntu Linux 0.9 RC2.2

MarsBoard RK3066. Część 3: Debian 7.2, openSUSE 12.3, Ubuntu Server 12.06




Dual-core RK3066

The Marsboard-SOM-RK3066 is powered by the popular Rockchip dual core SOC combining a power dual core ARM Cortex A9 CPU and Quad core Mali400MP4 GPU.



Flexible Design

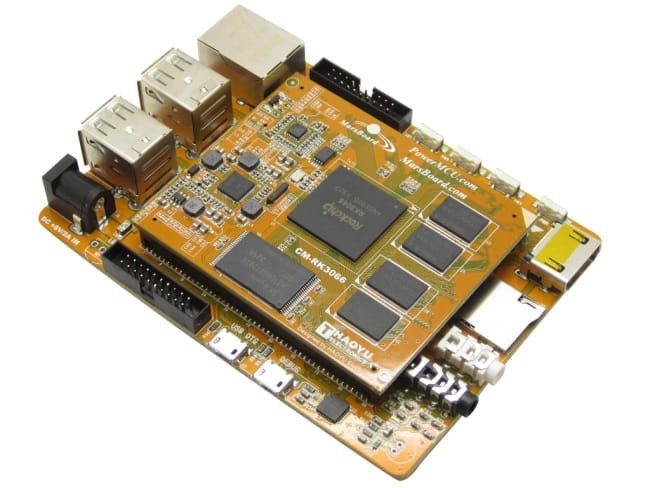

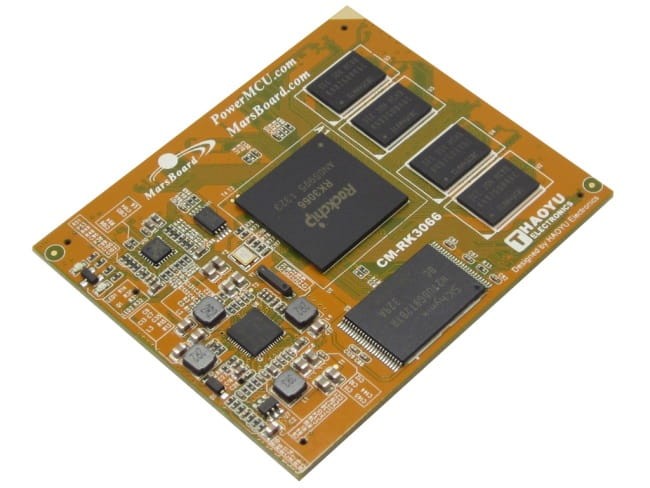

The board has a flexible design with one CPU module CM-RK3066 mounted on one base board which is easy for customers to design their own base board or upgrade the CPU module.

Diverse IO

The Marsboard-SOM-RK3066 comes with a range of IO, including USB, HDMI, IR, USB Debug serial, Ethernet, MicroSD slot, LCD connectors, Audio Codec , Camera 20 pin extended port.



Specyfication:

  • SOC: Rockchip RK3066
  • CPU: ARM Cortex-A9 Dual core @ 1.6Ghz
  • Memory: 1GB DDR3
  • Storage: 4GB NAND Flash, eMMc, Micro-SD SDXC up to 128GB
  • GPU: Mali400-mp4@533Mhz, OpenGL ES 2.0
  • Digital Video: HDMI 1.4 type A up to 1080p@60hz
  • Ethernet: 10/100M Ethernet port
  • WIFI: USB wifi
  • Audio: S/PDIF, headphone jack
  • USB Host: 4 * USB 2.0 standard A type
  • USB OTG: USB OTG micro-USB connector
  • Serial: USB Serial Console for debugging
  • IR: Support self defined IR remote
  • Button: Power, recovery
  • RTC: Support power off alarm
  • LCD: LCD Connector(Capacitive touch)

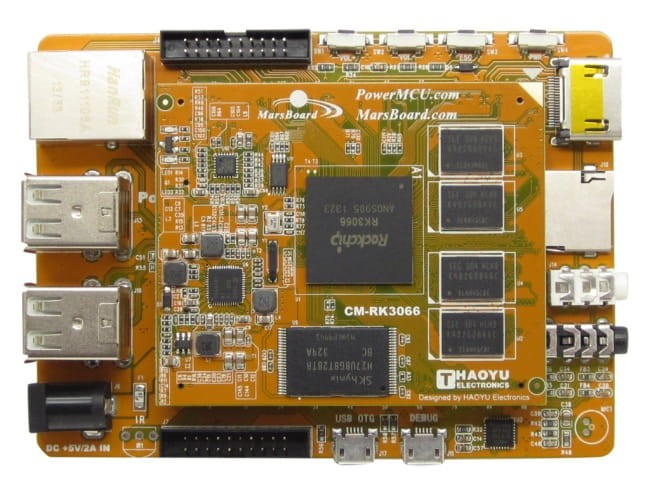

What is on board:
1
  1. Rockchip RK3066 ARM Cortex A9 Dual-core @ 1.6Ghz + Mali-400 GPU
  2. 1GB DDR3 SDRAM up to 2GB
  3. 4GB Nand Flash & eMMC FLASH
  4. Power Management Unit - TPS659102
  5. TX indicator LED use for debug
  6. Power Indicator LED
  7. 10/100M Ethernet PHY - LAN8720A

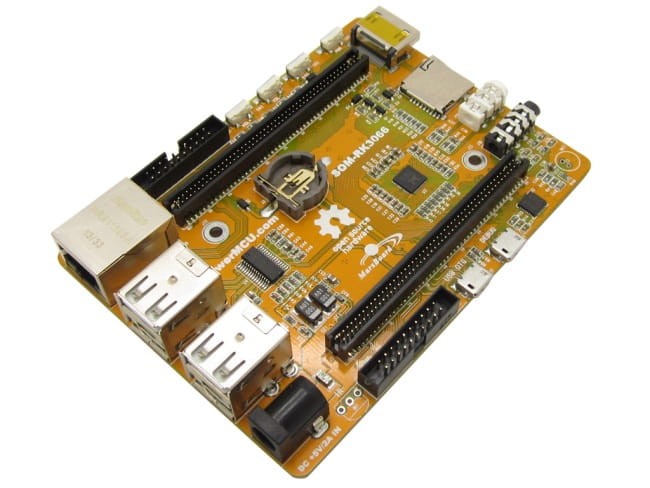

2
  1. HDMI A Type socket
  2. Audio Codec IC - ALC5631Q
  3. mrcro SD card (TF card)socket
  4. HPHONE Output
  5. Speaker Output
  6. MIC Microphone not soldered
  7. DEBUG - CP2102
  8. Micro USB DEBUG port
  9. Micro USB OTG port
  10. Ext Port
  11. IR Receiver - not soldered
  12. Power Supply - 5V/2A
  13. 2 x USB 2.0 Host port
  14. CR1220 RTC Battery Holder
  15. 2 x USB 2.0 Host port
  16. RJ45 10/100M Ethernet
  17. USB 2.0 Host IC - FE1.1S
  18. Ext Port - Camera CIF port
  19. VOL + (Recover Key), VOL -, ESC, Power KEY (from left to right)

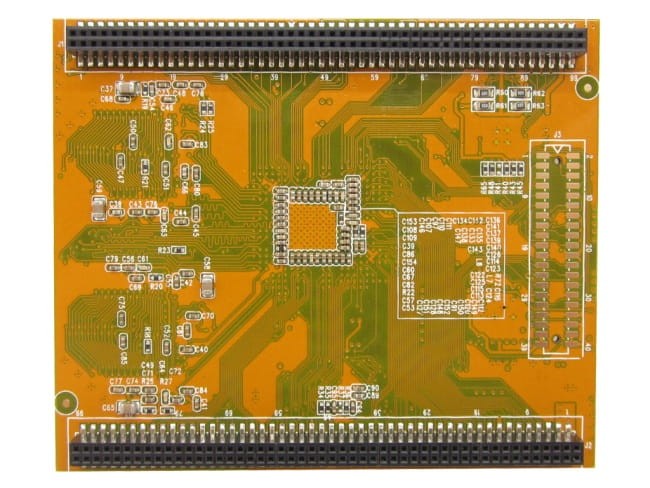

3
  1. J3, expansion 20x2 pin 1.27MM
  2. J2, expansion 50x2 pin 1.27MM
  3. J1, expansion 50x2 pin 1.27MM
4
  1. LCD Interface

Download

The following pages contain links to binaries, Micro SD card images and sources.

Wiki: link


Package Contains:

1.  MarsBoard RK3066 x 1

2. USB wifi ( RTL8188EU) x 1
