10.1" 1024x600 TFT LCD Display with capacitive touch panel
Cena regularna:
350,00 zł
towar niedostępny
Wyświetlacz współpracuje z New MarsBoard A20 oraz MarsBoard RK3066
Description

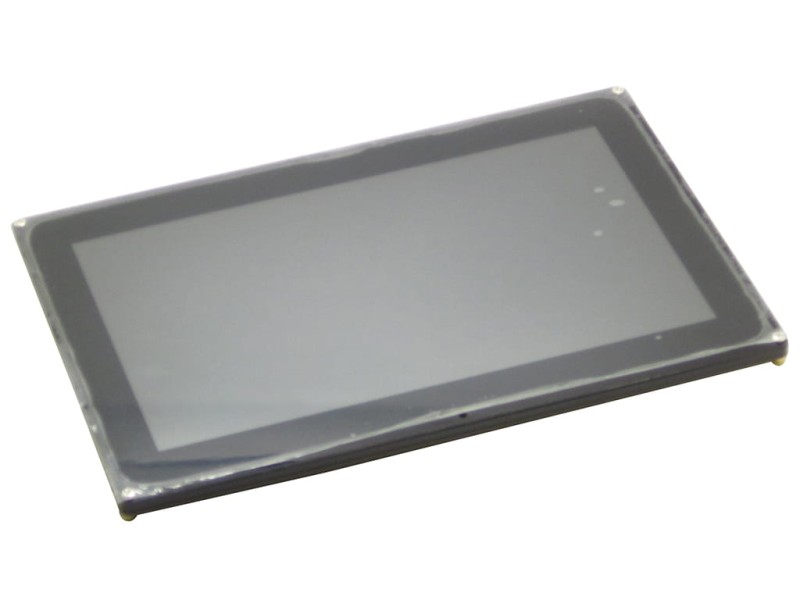

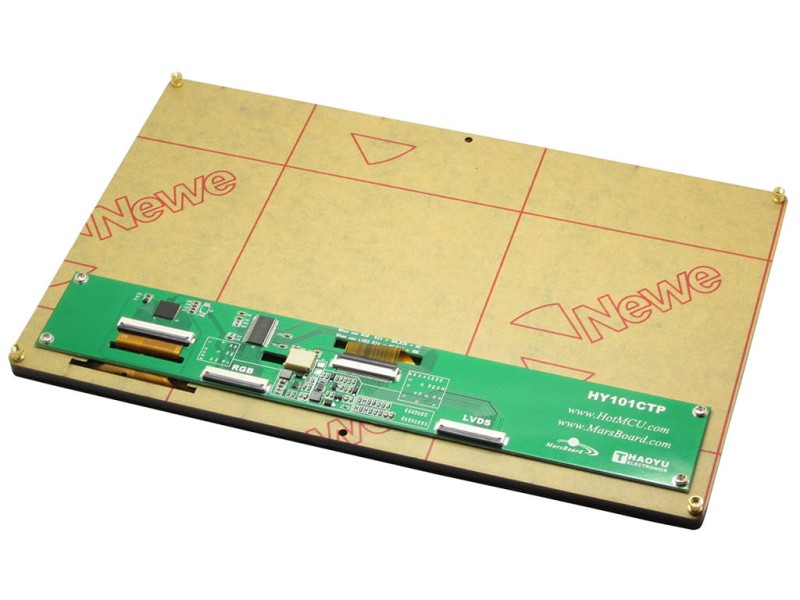

The HY101CTP 10.1 inch LCD Module is designed to work with HAOYU Electronics's ARM development boards and MarsBoard's single board computers. It has one 10.1 inch TFT LCD including capacitive touch screen with 1024 by 600 pixels resolution.
Features
LCD size | 10.1 inch(Diagonal) |
Touch Screen Controller | FT5406 |
LCD Type | TFT |
Resolution | 1024 × 3 (RGB) × 600 |
Backlight | LED |
Interface type | RGB |
LVDS | |
Active area | 222.72 x 125.28 mm |
RGB Pin Assignment
PIN NO | Symbol | I/O | Function |
1 | BLVDD | Power | Backlight power supply connect 5V |
2 | BLVDD | Power | Backlight power supply connect 5V |
3 | GND | Power | Power ground |
4 | VDD | Power | Power supply voltage connect 3.3V |
5 | R0 | Input | Red data (LSB) |
6 | R1 | Input | Red data |
7 | R2 | Input | Red data |
8 | R3 | Input | Red data |
9 | R4 | Input | Red data |
10 | R5 | Input | Red data |
11 | R6 | Input | Red data |
12 | R7 | Input | Red data (MSB) |
13 | G0 | Input | Green data (LSB) |
14 | G1 | Input | Green data |
15 | G2 | Input | Green data |
16 | G3 | Input | Green data |
17 | G4 | Input | Green data |
18 | G5 | Input | Green data |
19 | G6 | Input | Green data |
20 | G7 | Input | Green data (MSB) |
21 | B0 | Input | Blue data (LSB) |
22 | B1 | Input | Blue data |
23 | B2 | Input | Blue data |
24 | B3 | Input | Blue data |
25 | B4 | Input | Blue data |
26 | B5 | Input | Blue data |
27 | B6 | Input | Blue data |
28 | B7 | Input | Blue data (MSB) |
29 | GND | Power | Power ground |
30 | PCLK | Input | Pixel clock |
31 | LCD-BL-EN | Input | LCD backlight on/off, On=1; Off = 0; |
32 | HSYNC | Input | Horizontal Sync Signal |
33 | VSYNC | Input | Vertical Sync Signal |
34 | DE | Input | Data Enable |
35 | LCD-BL-ADJ | Input | LCD backlight Control (PWM control) |
36 | GND | Power | Power ground |
37 | CTP-SDA | Input/Output | CTP I2C SDA |
38 | CTP-SCL | Input | CTP I2C SCL |
39 | CTP-RST | Input | CTP Reset input |
40 | CTP-INT | Output | CTP Interrupt output |
LVDS Pin Assignment
PIN NO | Symbol | I/O | Function |
1 | BL3-VDD_5V | Power | Backlight power supply connect 5V |
2 | BL2-VDD_5V | Power | Backlight power supply connect 5V |
3 | BL1-VDD_5V | Power | Backlight power supply connect 5V |
4 | NC | No Connector | |
5 | LCD-BL-EN | Input | LCD backlight on/off, On=1;Off = 0; |
6 | LCD-BL-ADJ | Input | LCD PWM backlight control |
7 | NC | No Connector | |
8 | BL3-GND | Power | Backlight Power ground |
9 | BL2-GND | Power | Backlight Power ground |
10 | BL1-GND | Power | Backlight Power ground |
11 | CTP-RST | Input | CTP reset input |
12 | CTP-INT | Output | CTP interrupt output |
13 | GND7 | Power | Power ground |
14 | NC | No Connector | |
15 | NC | No Connector | |
16 | GND6 | Power | Power ground |
17 | NC | No Connector | |
18 | NC | No Connector | |
19 | GND5 | Power | Power ground |
20 | LVDS-D3P | Input | LVDS differential data input |
21 | LVDS-D3N | Input | LVDS differential data input |
22 | GND4 | Power | Power ground |
23 | LVDS-CLKP | Input | LVDS differential clock input |
24 | LVDS-CLKN | Input | LVDS differential clock input |
25 | GND3 | Power | Power voltage connect 3.3V |
26 | LVDS-D2P | Input | LVDS differential data input |
27 | LVDS-D2N | Input | LVDS differential data input |
28 | GND2 | Power | Power ground |
29 | LVDS-D1P | Input | LVDS differential data input |
30 | LVDS-D1N | Input | LVDS differential data input |
31 | GND1 | Power | Power ground |
32 | LVDS-D0P | Input | LVDS differential data input |
33 | LVDS-D0N | Input | LVDS differential data input |
34 | CTP-SDA | Input/Output | CTP I2C SDA |
35 | CTP-SCL | Input | CTP I2C SCL |
36 | NC | No Connector | |
37 | VDD3 | Power | Power voltage connect 3.3V |
38 | VDD2 | Power | Power voltage connect 3.3V |
39 | VDD1 | Power | Power voltage connect 3.3V |
40 | NC | No Connector |
Hardware Specifications
RGB signal interface is compatible with HY050CTP-HD, HY070CTP, HY070CTP-HD, LVDS signal interface different with HY070CTP-HD.
Software Specifications
LCD display timing is compatible with HY070CTP-HD, capacitive touch driver compatible with HY050CTP-HD, HY070CTP, HY070CTP-HD, but HY101CTP capacitive touch Y axis polarity different with HY070CTP-HD.
Package content
- 1 x HY101CTP
- 1 x 40 pin connect cable
Documents
HY101CTP LCD DataSheet.pdf
ft5x06 source code application and LCD Timing
FT5x06 DataSheet V4.0.pdf
HY101CTP Dimension.dxf
HY_LCD_Reference Design.pdf
