Matryca LED RGB 16x32

Cena:: 144,07 zł
zawiera 23% VAT, bez kosztów dostawy
144.07
ilość szt.

towar niedostępny

Producent: SeeedStudio
Kod produktu: 104990094

Opis

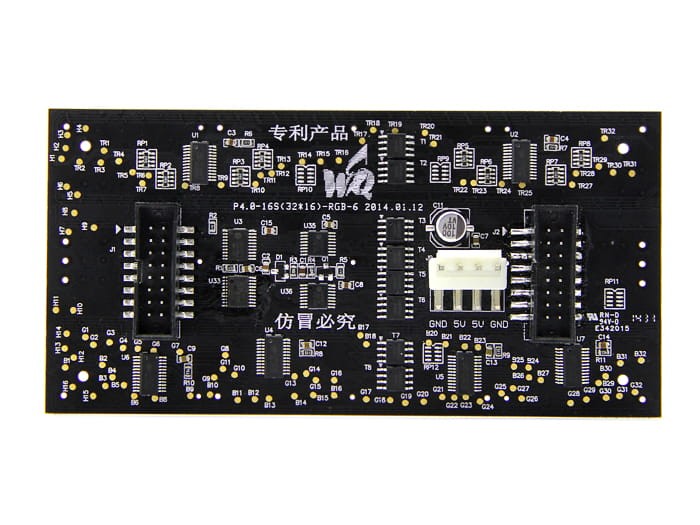

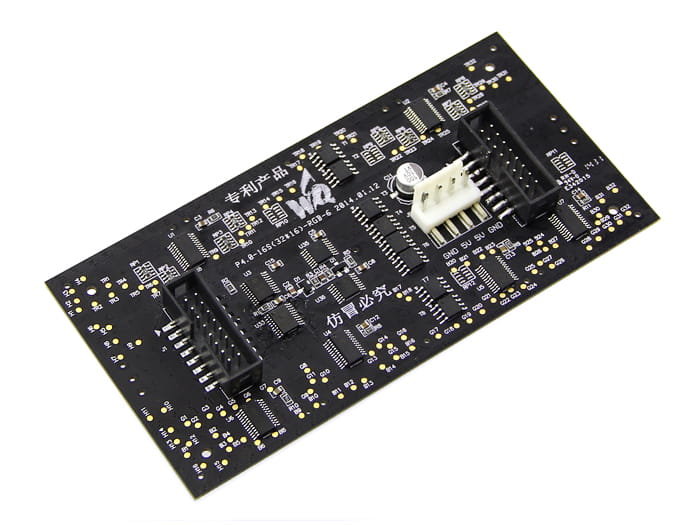

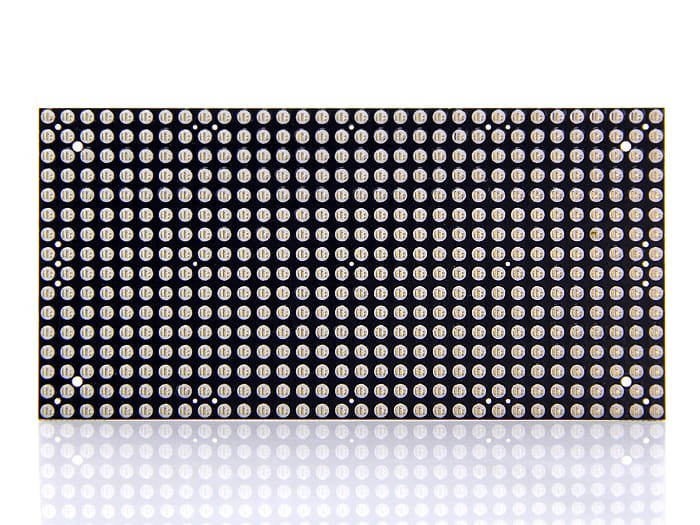

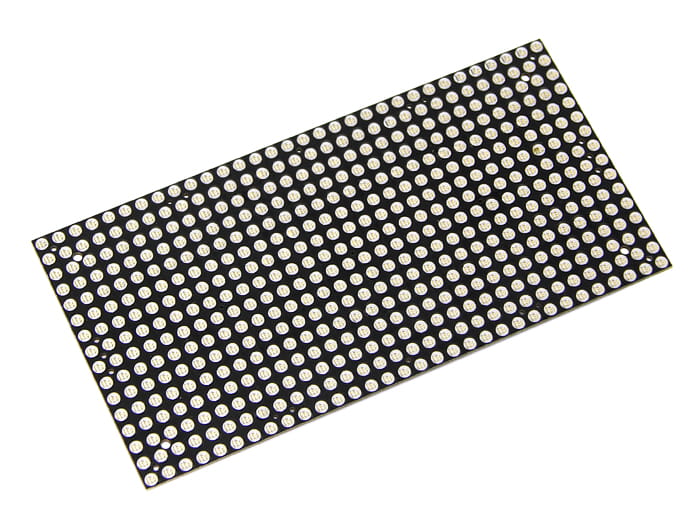

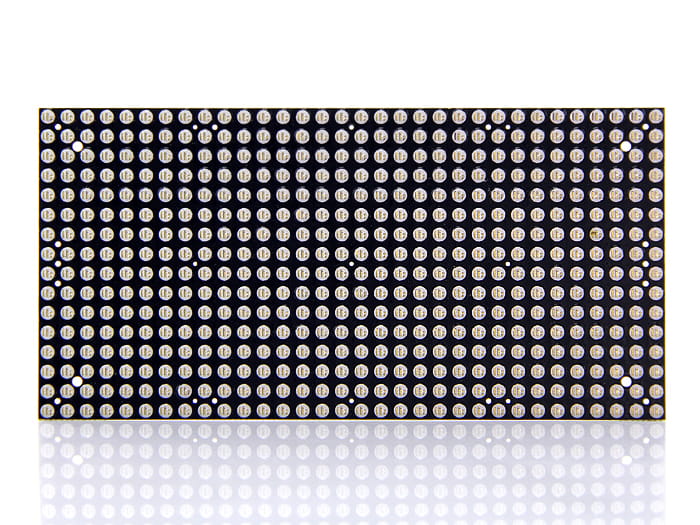

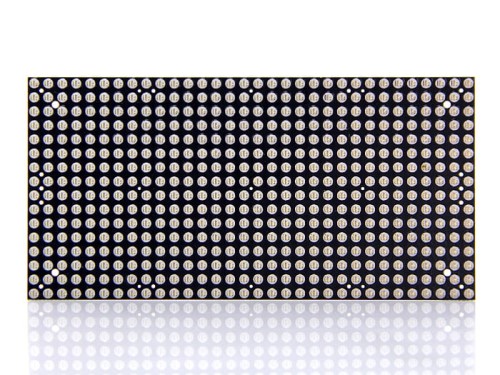

Super lekka oraz super cienka matryca z LEDami RGB! Matryca posiada bardzo ciekawą konstrukcję - diody są umieszczone bezpośrednio na PCB. Rozdzielczość 16x32. Moduły mogą być łączone szeregowo, każda matryca posiada dodatkowe złącza.

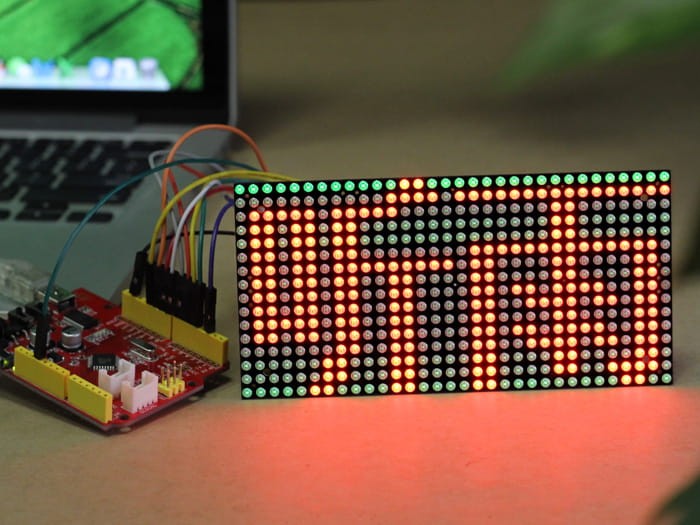

The ultra light and ultra thin LED matrix panel we have ever seen! It consists of one fully assembled panel and a 10 pin IDC cable. There are 512 bright RGB LEDs on the panel. Large view angle makes the brightness never decay when watching from the side. The panel module is also chainable, which can be connected together to make an extra long display. You may need an microcontroller to control this display, such as an Arduino Uno shown in the following image:

http://arduinosolutions.com/

Feature:
Indoor display

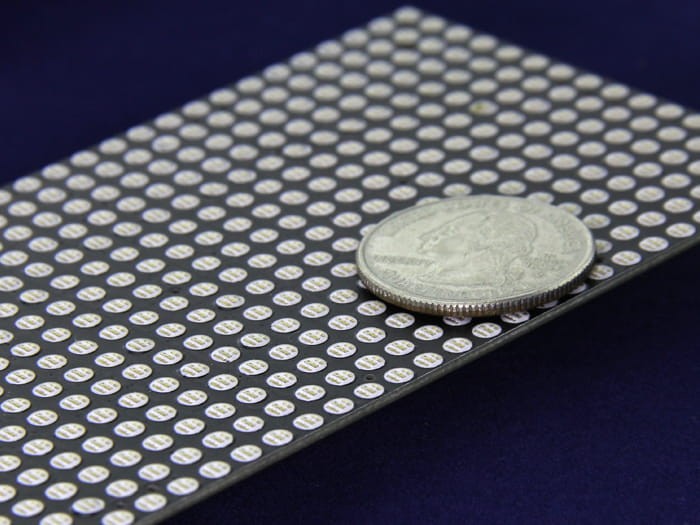

Ultra thin design
Ultra light weight
Low power
Chainable
Large view angle
RGB

Specification:
Display color: RGB
Pixel pitch: 4.0mm
Diameter of pixel: 3.0mm
Pixel resolution: 16x32
The Best View: 2-4 Meter
Scanning mode: 1/16 scan rate
Weight: 28g
Outline Dimension: 64 x 128 x 11mm
Interface protocol: Hub08
View angle: over 160 degrees
Peak Power: 4W
Average Power: 3.5w


http://arduinosolutions.com/
