Description

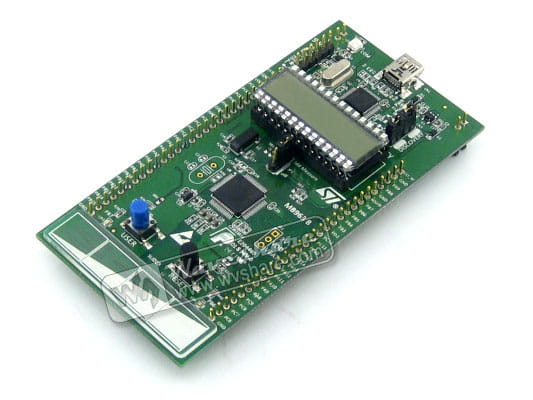

The STM32L-DISCOVERY helps you to discover the STM32L ultralow power features and to develop and share your applications.
It is based on an STM32L152RBT6 and includes an ST-Link/V2 embedded debugging tool interface, an LCD (24 segments, 4 commons), LEDs, pushbuttons, a linear touch sensor or touchkeys.
Key Features
- STM32L152RBT6 microcontroller featuring 128 KB Flash, 16 KB RAM, 4 KB EEPROM, in an LQFP64 package
- On-board ST-Link/V2 with selection mode switch to use the kit as a standalone ST-Link/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 3.3 or 5 V supply voltage
- External application power supply: 3 V and 5 V
- IDD current measurement
- LCD
- DIP28 package
- 24 segments, 4 commons
- Four LEDs:Two pushbuttons (user and reset)
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power on
- Two user LEDs, LD3 (green) and LD4 (blue)
- One linear touch sensor or four touchkeys
- Extension header for LQFP64 I/Os for quick connection to prototyping board and easy probing

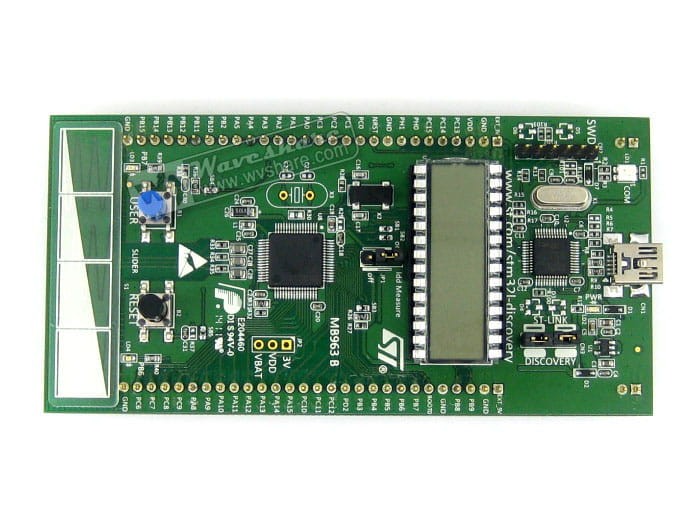

What's Onboard
Design Support
For Technical Documentation, Software & Development Tools, Hardware Resources, view the STM32L-DISCOVERY official page on www.st.com to get more information: http://www.st.com/internet/evalboard/product/250990.jsp

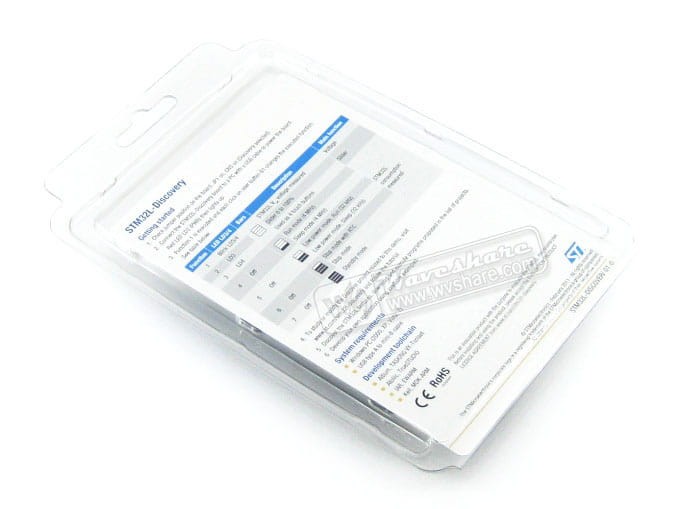

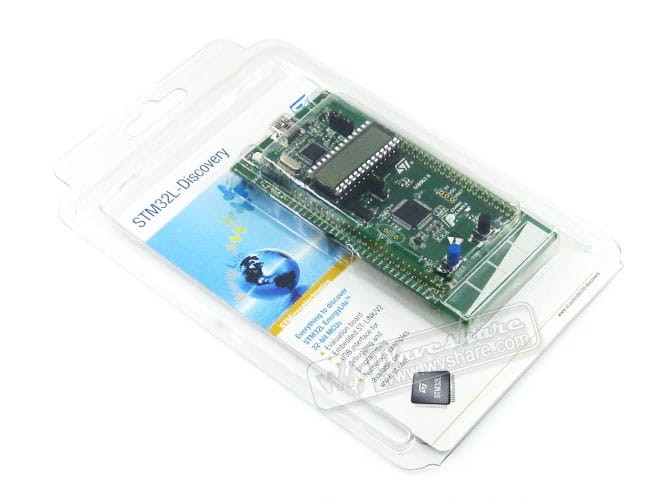

Package Contains
- STM32L-DISCOVERY × 1
