Złącza dla Odroid-C0
・Kup teraz i zapłać za 30 dni
towar niedostępny
Opis
Zestaw złączy i gniazd dla Odroid-C0.

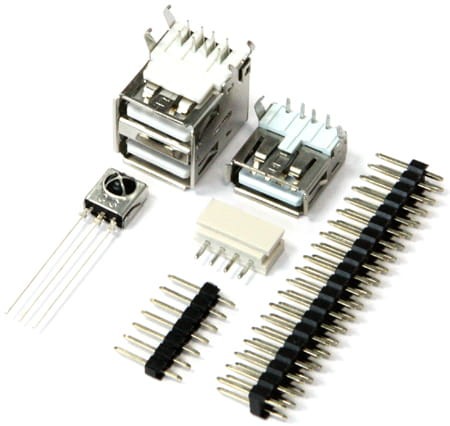

Zawartość zestawu jak na zdjęciu powyżej.
A. Double Layer USB Type-A 8-Pin DIP Jack Connector
B. Single Layer USB Type-A 4-Pin DIP Jack Connector
C. IR(InfraRed) Receiver Sensor
This is a remote control receiver module that can accept standard 37.9Khz carrier frequency based wireless data.
D. UART Console Connector
Molex 5268-04a(2.5mm pitch) is mounted on the PCB.
Its mate is Molex 50-37-5043 Wire-to-Board Crimp Housing.
E. 7-pin Strip Male Header
Add pins to the audio I2S interface holes in the ODROID-C0.
2.54mm(0.1inch) pitch
F. 20x2-pin Strip Male Header
Add pins to the 40pin GPIO port.
2.54mm(0.1inch) pitch
