3.2" Touch Screen TFT LCD with 16 bit parallel interface

Dostępność:: 5
Wysyłka:: 24 - 48 godzin
Cena:: 69,00 zł 69.00
Cena netto: 56,10 zł
quantity szt.
dodaj do przechowalni

Opis

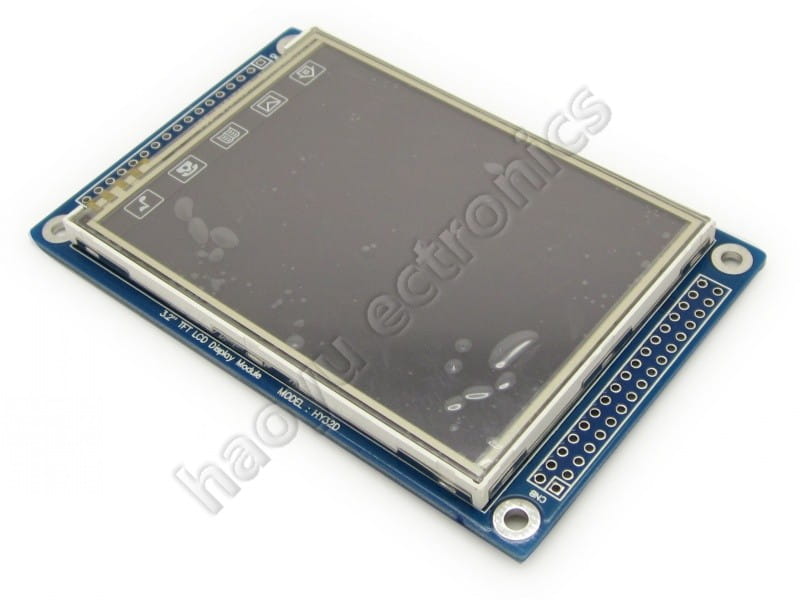

Wyświetlacz bez ikon widocznych na zdjęciach, osoby zainteresowane wersja z ikonami proszę o maila.

Dispaly without icons, if you need version with icons - like on photos below please mail me.


1

Description

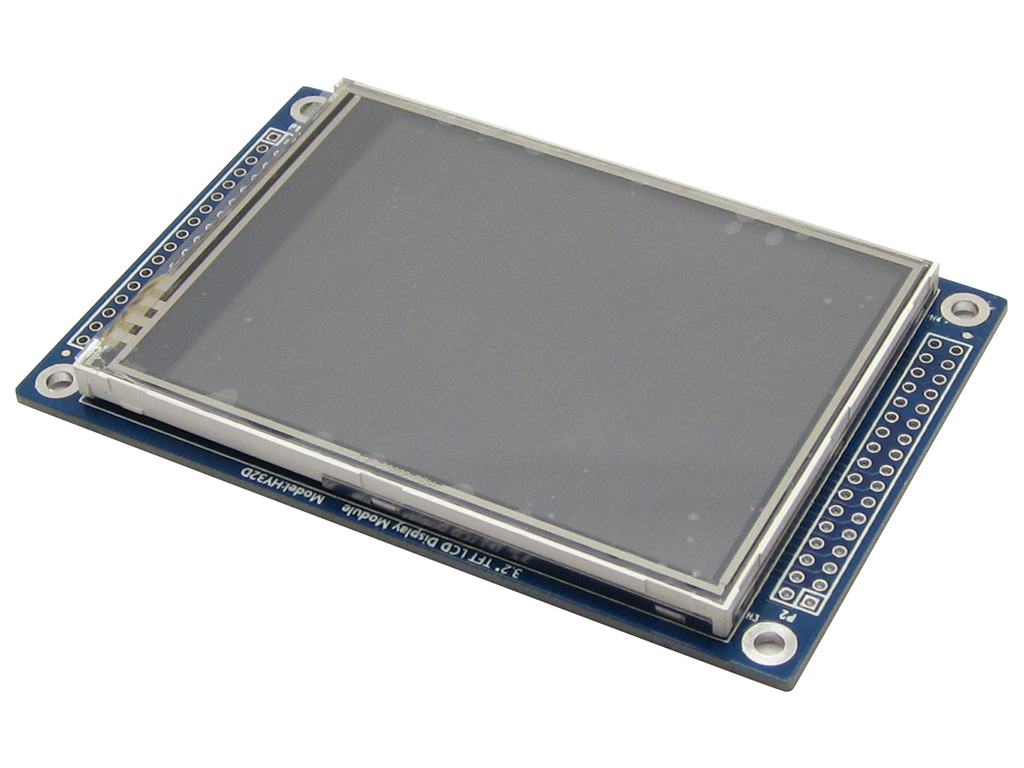

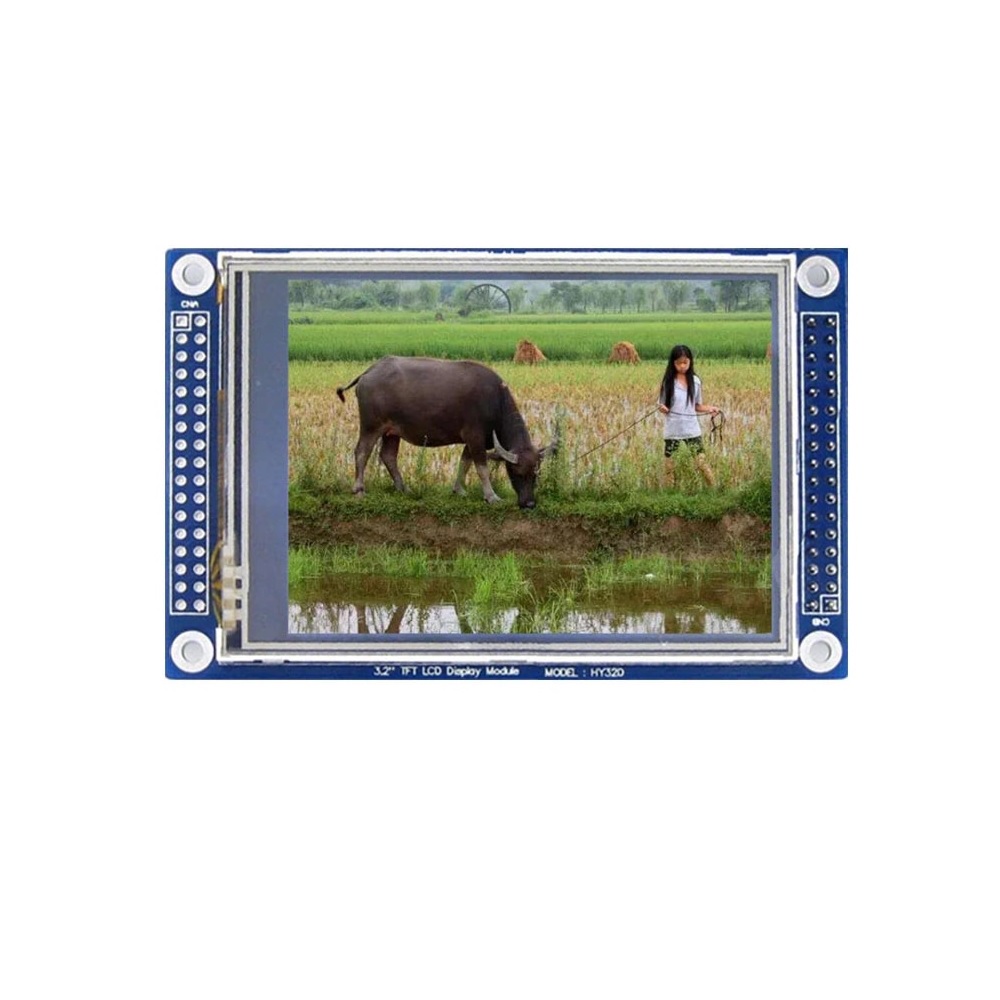

LCD Controller  ILI9325
Touch Screen Controller ADS7843 or XPT2046
LCD Type TFT
LCD Interface 16-bit parallel
Touch Screen Interface SPI
Backlight LED
Colors 65536
Resolution 320*240





4 D1
5 D2
6 D3
7 D4
8 D5
9 D6
10 D7
11 D8
12 D9
13 D10
14 D11
15 D12
16 D13
17 D14
18 D15
19 CS LCD chip select Low active
20 RS Instruction/Data register selection RS = 1 : Instruction Register
RS = 0 : Data Register
21 WR Write WR = 0, RD = 1
22 RD Read WR = 1, RD = 0
23 RESET Reset the controller chip Low active
24 NC Not connect Not connect
25 BLVCC must be 5V Backlight VCC
26 BLGND Ground Backlight GND
27 BLCNT Backlight brightness adjustment Control the backlight brightness via PWM
28 TP_IRQ Touch screen interrupt Low level while the touch screen detects pressing
29 TP_CS Touch screen chip select Low active
30 TP_SCK Touch screen SPI clock connects to SPI SCK
31 TP_SI Touch screen data input connects to SPI MOSI
32 TP_SO Touch screen data output connects to SPI MISO
33 3.3V 3.3V power supply When powered from 3.3V supply,
Pin 33 & Pin 34 as power input,
Pin 1 & Pin 2 keep NC.
34 GND Ground Power Ground

Document
MDK project for STM32.rar
example source code for STM32.rar
HY32D LCD module Frame.PCB
HY32D LCD module Schematic.pdf
