Core407V-1
  • promocja

Core407V STM32F407VET6

Cena:: 118,00 zł
zawiera 23% VAT, bez kosztów dostawy

Cena regularna: 148,00 zł

118.00
Najniższa cena z 30 dni przed obniżką: 148,00 zł Jeżeli produkt jest sprzedawany krócej niż 30 dni, wyświetlana jest najniższa cena od momentu, kiedy produkt pojawił się w sprzedaży.
ilość szt.
-20%

towar niedostępny

Producent: WaveShare
Kod produktu: Core407V Waveshare 5852

Opis

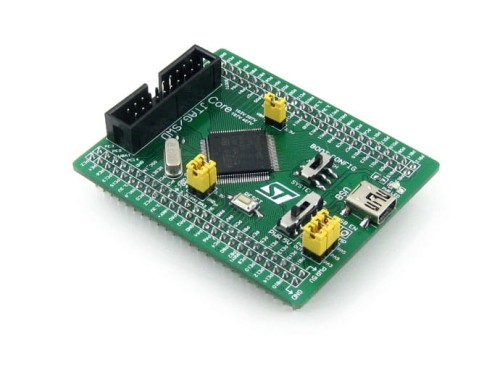

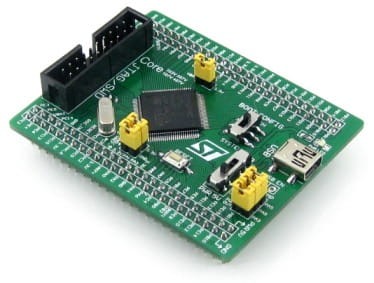

Core407V płytka rozwojowa z mikrokontrolerem STM32F407VET6. Płytka idealnie nadaje się do rozpoczęcia pracy z tym mikrokontrolerem lub do wbudowania w Twoje urządzenie jako główny sterownik. Na płytce znajdują się wszystkie podzespoły potrzebne do pracy mikrokontrolera: złącze USB oraz JTAG/SWD służące do programowania oraz debugowania. Wszystkie linie I/O mikrokontrolera zostały wyprowadzone na listwy gold pin o rozstawie 2.54mm.

Opis płyty:

1. STM32F407VET6: the high performance STM32 MCU which features:

  • Core: Cortex-M4 32-bit RISC
  • Feature: a full set of single-cycle DSP instructions
  • Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
  • Operating Voltage: 1.8V-3.6V
  • Package: LQFP100
  • Memories: 512kB Flash, 192+4kB SRAM
  • MCU communication Interfaces:
    • 3 x SPI, 3 x USART, 2 x UART, 2 x I2S, 3 x I2C
    • 1 x FSMC, 1 x SDIO, 2 x CAN
    • 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY
    • 1 x 10/100 Ethernet MAC
    • 1 x 8 to 12-bit parallel camera interface
  • AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
  • Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP

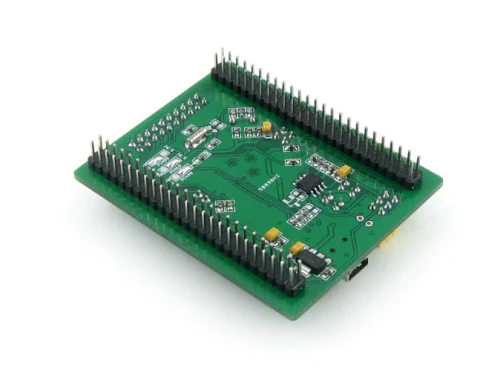

2.  AMS1117-3.3 (on bottom side): 3.3V voltage regulator
3.  MIC2075 (on bottom side): onboard USB power management device
4.  Power supply switch, powered from 5Vin or USB connection
5.  Boot mode switch, for configuring BOOT0 pin
6.  Power indicator
7.  Reset button
8.  8M crystal oscillator
9.  32.768K crystal (on bottom side), for internal RTC with calibration

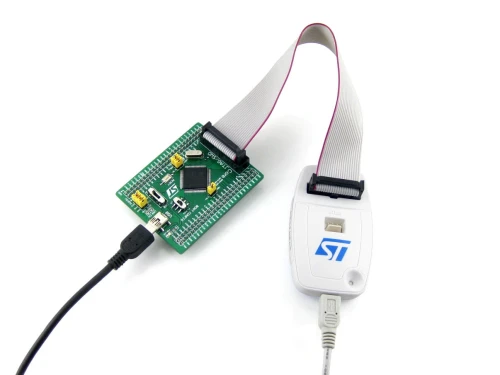

10. JTAG/SWD interface: for debugging/programming
11. USB connector, used for establishing USB communication between PC and the STM32 development board
12. IO expander (including VCC/GND), all the MCU pins are accessible on expansion connectors for further expansion
13. 5Vin pinheader, 5V power supply is required when using USB HOST/OTG
14. USB jumper

  • short the jumper to when using USB
  • open the jumper to disconnect from I/O ports

15. VBAT selection jumper

  • short the jumper to use system power supply
  • open the jumper to connect the VBAT to external power, such as battery

16. VREF selection jumper

  • short the jumper to connect VREF+/VREF- to VCC/GND
  • open the jumper to connect VREF+/VREF- to other custom pin via jumper wire



Wymiary płyty:

Zestaw zawiera:

  1. Core407V development board x 1
  2. USB type A to Mini-B cable x 1
  3. 4-pin wire x 2
  4. 2-pin wire x 2



Dodatkowe informacje, dema, schematy:

Wiki: http://www.waveshare.com/wiki/Core407V
