Core407Z STM32F407ZET6
towar niedostępny
Opis
Przegląd:

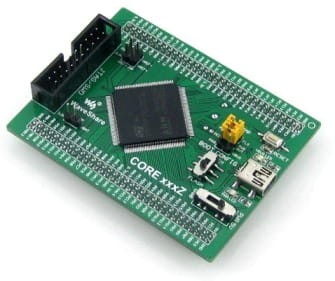

Core407Z to mała płytka programistyczna STM32, która jako mikrokontroler obsługuje urządzenie STM32F407ZET6 i obsługuje dalszą rozbudowę. Jest idealny do rozpoczęcia tworzenia aplikacji z rodziną STM32F.
Jako minimalny gotowy do uruchomienia system, Core407Z integruje interfejs komunikacyjny USB, interfejs programowania / debugowania JTAG / SWD, obwód zegara, zarządzanie energią USB, wybór trybu rozruchu i tak dalej.
Ponadto, nagłówki pinów z tyłu pozwalają Core407Z na podłączenie do tablicy aplikacyjnej i działają jak obwód rdzenia MCU w twoim systemie. Wszystkie porty I / O są dostępne na nagłówkach pinów, a podziałka nagłówka jest zaprojektowana na 2,00 mm.
What's On Board
1. STM32F407ZET6: the high performance STM32 MCU which features:
- Core: Cortex-M4 32-bit RISC
- Feature: a full set of single-cycle DSP instructions
- Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
- Operating Voltage: 1.8V-3.6V
- Package: LQFP144
- Memories: 512kB Flash, 192+4kB SRAM
- MCU communication Interfaces:
- 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C
- 1 x FSMC, 1 x SDIO, 2 x CAN
- 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY
- 1 x 10/100 Ethernet MAC
- 1 x 8 to 14-bit parallel camera interface
- AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
- Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP
2. AMS1117-3.3 (on bottom side): 3.3V voltage regulator
3. MIC2075 (on bottom side): onboard USB power management device
4. Power supply switch, powered from 5Vin or USB connection
5. Boot mode switch, for configuring BOOT0 pin
6. Power indicator
7. VBUS LED
8. Reset button
9. 8M crystal oscillator (on bottom side)
10.32.768K crystal (on bottom side), for internal RTC with calibration
11.JTAG/SWD interface: for debugging/programming
12.USB interface
- as DEVICE, used for establishing USB communication between PC and the STM32 development board
- as HOST, connecting to USB devices such as USB flash drive through a USB OTG cable
13.MCU pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
14.5Vin pinheader, 5V power supply is required when using USB HOST/OTG
15.USB HOST/OTG jumper
- short the jumper when using USB HOST/OTG
- open the jumper to disconnect from I/O port
16.VBAT selection jumper
- short the jumper to use system power supply
- open the jumper to connect the VBAT to external power, such as battery
17.VREF selection jumper
- short the jumper to connect VREF+ to VCC
- open the jumper to connect VREF+ to other custom pin via jumper wire
Photos
Uwaga: Core407Z zapewnia interfejs debugowania JTAG / SWD, ale NIE integruje żadnej funkcji debugowania, wymagany jest debugger. Płyta główna i programator / debugger na zdjęciach NIE są wliczone w cenę.
Interfejsy JTAG / SWD
Rysunek 1, rysunek 2 pokazuje odpowiednio pinout nagłówka interfejsu JTAG, SWD
Dimensions
Pakiet zawiera:
- Core407Z development board x 1
- USB type A to Mini-B cable x 1
Development Resources
- Related software (KEIL etc.)
- Examples in C
- Schematic (PDF)
- Development documentations
Wiki: www.waveshare.com/wiki/Core407Z
