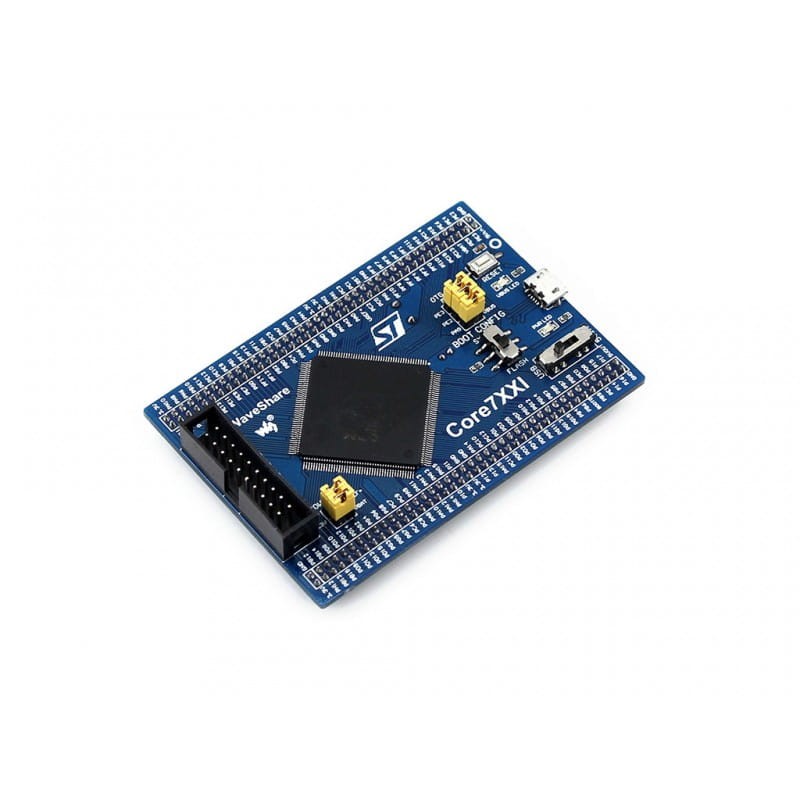

Core746I moduł z STM32F746I GT6

Cena:: 145,00 zł
zawiera 23% VAT, bez kosztów dostawy
145.00
ilość szt.

towar niedostępny

Producent: WaveShare
Kod produktu: Core746I Waveshare 11444

Opis

Core746I moduł z mikrokontrolerem STM32F746IGT6, idealny do rozpoczęcia pracy z STM32F7I.

Specyfikacja:

  • Minimalny system umożliwiający pracę mikrokontrolera: system zegarowy, zasilanie USB, itp.
  • Pamieć: 64M Bit SDRAM
  • Wszystkie linie I/O dostępne na złączach goldpin
  • Gniazdo programatora\debuggera: JTAG/SWD
  • Rozstaw wyprowadzeń płytki: 2.0mm

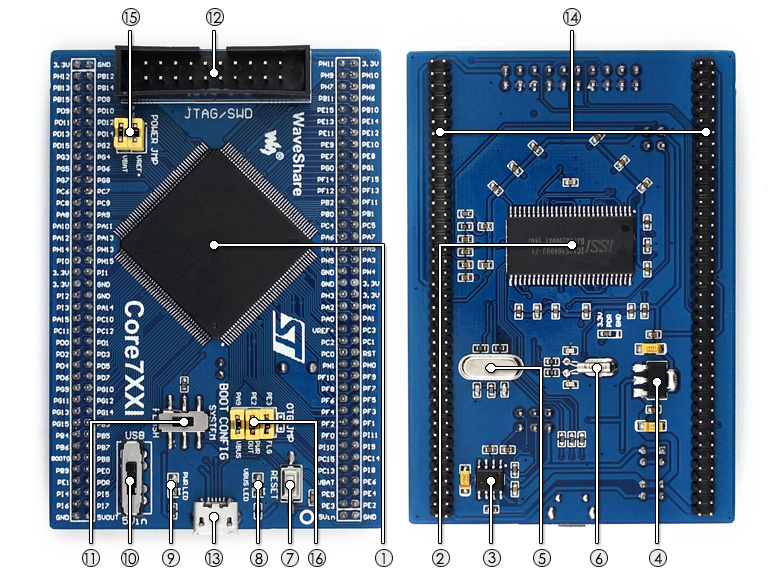

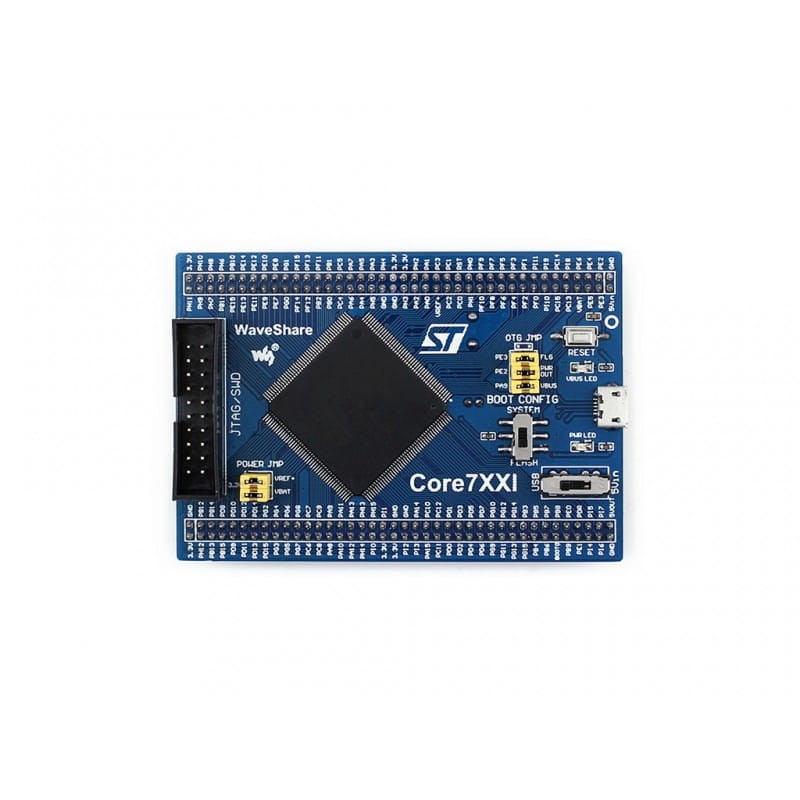

Opis modułu:

  1. STM32F746IGT6: the high performance STM32 MCU which features:
    • Core: Cortex-M7 32-bit RISC + FPU + Chrom-ART graphic accelerator
    • Feature: single-cycle DSP instructions
    • Operating Frequency: 216MHz, 462 DMIPS/2.14 DMIPS/MHz
    • Operating Voltage: 1.7V-3.6V
    • Package: LQFP176
    • Memories: 1024kB Flash, 320+16+4kB SRAM
    • MCU communication Interfaces:
      • 6 x SPI, 4 x USART, 4 x UART, 3 x I2S, 4 x I2C
      • 2 x CAN, 1 x QUAD-SPI, 1 x DCMI, 2 x SAI
      • 1 x FMC, 1 x SDMMC, 14 x TIM , 1xLPTIM
      • 1 xLCD-TFT, 1xSPDIFRX, 1xHDMI-CEC
      • 1 x USB 2.0 OTG FS
      • 1 x USB 2.0 OTG HS (supports external HS PHY through ULPI)
      • 1 x 10/100 Ethernet MAC
    • AD & DA converters: 3 x AD (12-bit); 2 x DA (12-bit)
    • Debugging/Programming: supports JTAG/SWD interfaces, supports IAP

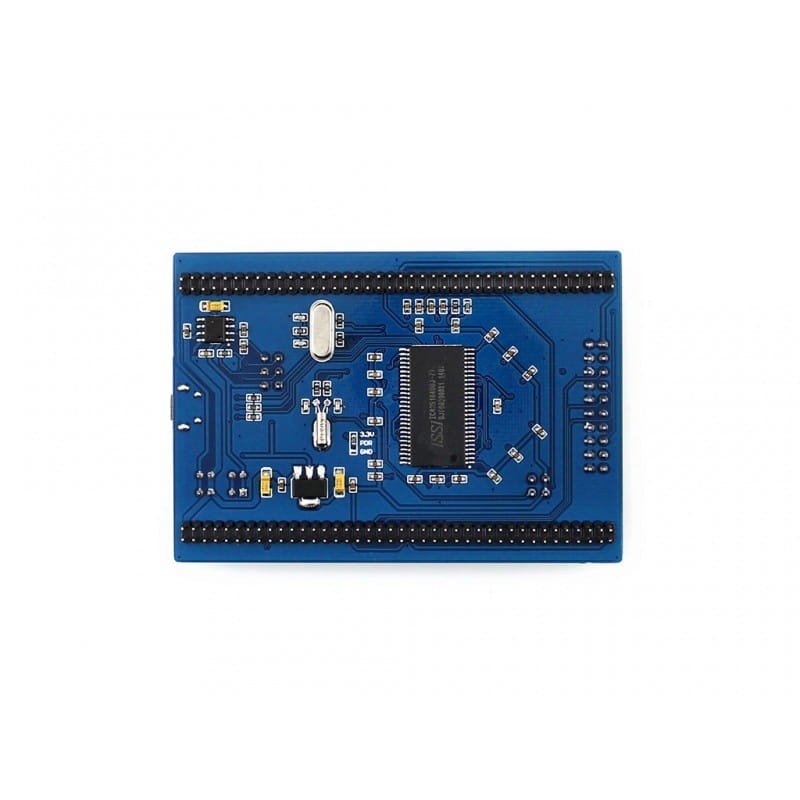

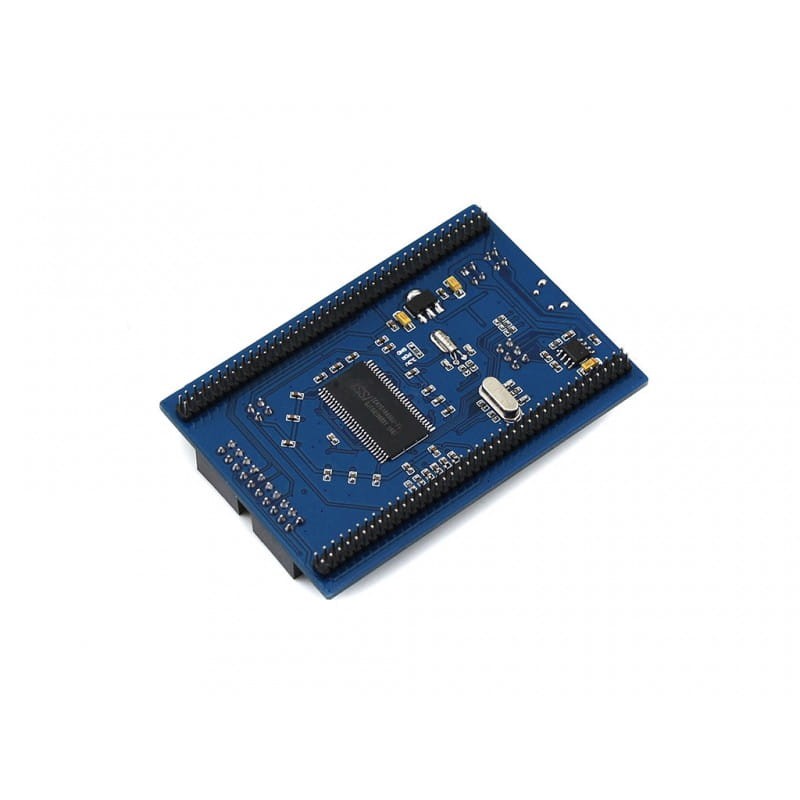

  2. IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)
  3. MIC2075: onboard USB power management device
  4. AMS1117-3.3: 3.3V voltage regulator
  5. 8M crystal
  6. 32.768K crystal, for internal RTC with calibration
  7. Reset button
  8. VBUS LED
  9. Power indicator
  10. Power supply switch, powered from 5Vin or USB connection
  11. Boot mode selection, for configuring BOOT0 pin
  12. JTAG/SWD interface: for debugging/programming
  13. USB connector, supports Device and/or Host
  14. MCU pins expander, VCC, GND and all the I/O pins are accessible on expansion connectors for further expansion
  15. Power jumper
    • VBAT: short the jumper to use system power supply, open it to connect external power, such as battery
    • VREF: short the jumper to connect VREF+ to VCC, open it to connect VREF+ to other custom pin via jumper wire
  16. OTG jumper
    • short the jumper when using USB OTG/HOST
    • open the jumper to disconnect from related I/O port

Development Resources

  • Schematic
  • Demo code (examples in C, FreeRTOS, μC/OS-III)
  • STM32 development software (KEIL, STM32CubeMX, etc.)
  • STM32 datasheets
  • STM32 development documentations





Wiki: Core746I

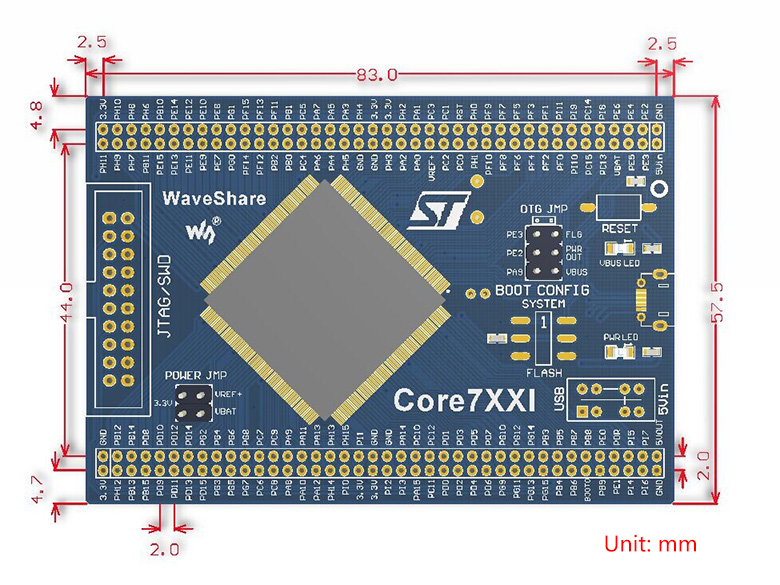

Wymiary:

Zestaw zawiera:

  1. Core746I x 1
  2. USB type A plug to micro B plug cable x 1
