Czujnik poziomu cieczy
towar niedostępny
Opis

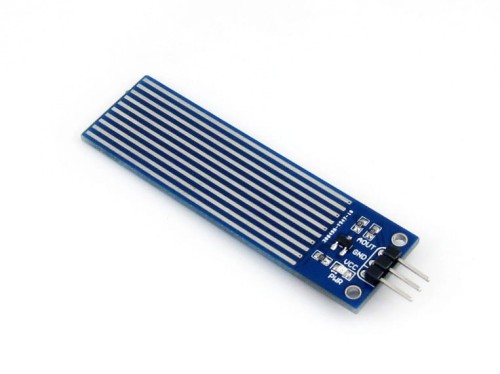

Czujnik poziomu cieczy - napięcie wyjściowe czujnika jest proporcjonalne do poziomy zanurzenia części pomiarowej czujnika, w zestawie znajdują się również przewody połączeniowe.
Overview
- Output voltage boosts along with the immersion depth of the module
Specifications
- Detection depth: 48mm
- Power: 2.0V ~ 5.0V
- Dimension: 19.0mm * 63.0mm
- Mounting holes size: 2.0mm
Applications
- Water level alarm
How to Use

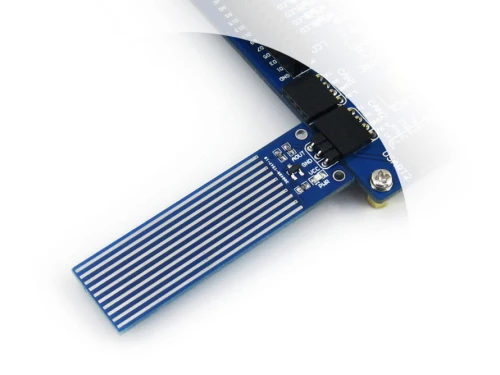

In the case of working with a MCU:

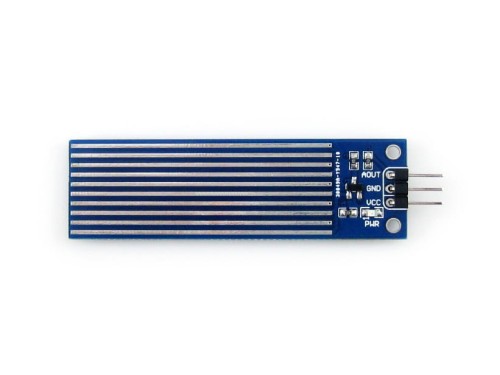

- VCC ↔ 2.0V ~ 5.0V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
Package Contains
- Liquid Level Sensor × 1
- 3-pin custom connector jumper wire × 1
Downloads
Development resources: demo codes, schematic, datasheets, etc.
