Moduł z czujnikiem wilgotności DHT22 (AM2302)
Cena::
42,50 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Najniższa cena z 30 dni przed obniżką:
・Kup teraz i zapłać za 30 dni
towar niedostępny
Dostępność::
brak towaru
Producent:
![WaveShare]()
Kod produktu:
DHT22 Temperature-Humidity Sensor Waveshare 11092
Kategoria::
Czujniki wilgotności
Overview

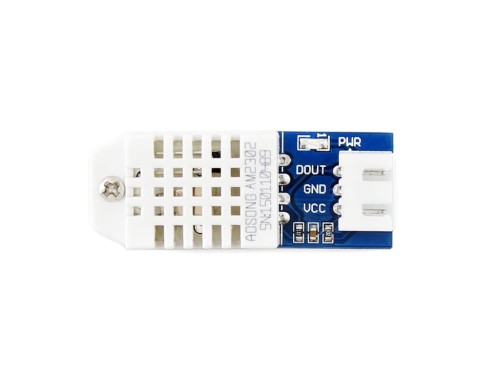

This is a calibrated digital temperature and humidity module with onboard sensor DHT22 (AM2302), which features higher accuracy and wider measuring range than DHT11.
It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.
Specifications
- Temperature
- Resolution : 0.1°C
- Accuracy : ±0.5℃
- Measuring range : -40°C ~ 80°C
- Humidity
- Resolution : 0.1%RH
- Accuracy : ±2%RH (25°C)
- Measuring range : 0%RH ~ 99.9%RH
- Operating voltage : 3.3V ~ 5.5 V
- Recommended storage condition
- Temperature : 10°C ~40°C
- Humidity : 60%RH or below
Applications
- Weather station
- Humidity controller
- Test & detection device
How to Use

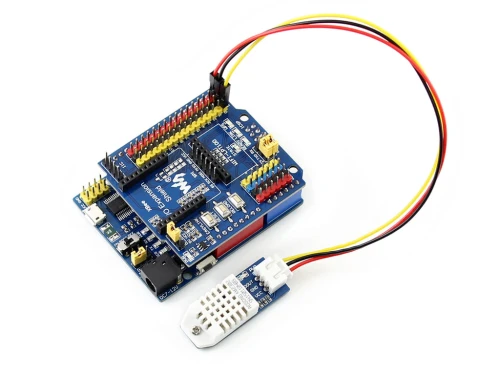

In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5.5V
- GND ↔ GND
- DOUT ↔ MCU.IO
Dimension
Wiki: DHT22_Temperature-Humidity_Sensor
Package Contains
- DHT22 Temperature-Humidity Sensor × 1
- XH2.54 3-pin wire × 1
