is powered by ARM® big.LITTLE™ technology, the Heterogeneous Multi-Processing (HMP) solution.
ODROID-XU4 is a new generation of computing device with more powerful, more energy-efficient hardware and a smaller form factor.
Offering open source support, the board can run various flavors of Linux, including the latest Ubuntu 15.04 and Android 4.4 KitKat and 5.0 Lollipop.
By implementing the eMMC 5.0, USB 3.0 and Gigabit Ethernet interfaces, the ODROID-XU4 boasts amazing data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices.
This allows users to truly experience an upgrade in computing, especially with faster booting, web browsing, networking, and 3D games.
The XU4Q is fully software compatible with XU3!
However, the XU4Q is more compact, more affordable and more expandable.
* Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
* Mali-T628 MP6(OpenGL ES 3.0/2.0/1.1 and OpenCL 1.1 Full profile)
* 2Gbyte LPDDR3 RAM PoP stacked
* eMMC5.0 HS400 Flash Storage
* 2 x USB 3.0 Host, 1 x USB 2.0 Host
* Gigabit Ethernet port
* HDMI 1.4a for display

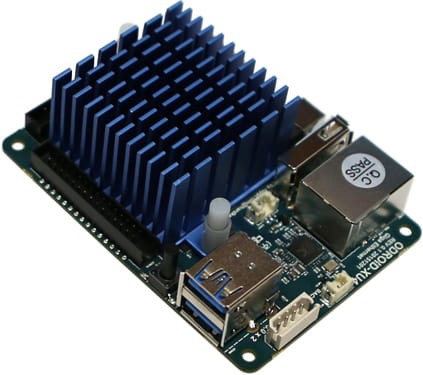

- ODROID-XU4 Board
- Passive cooler(XU4Q) mounted
The passive tall-blue-heat-sink mounted on XU4Q is too tall to use the XU4 shifter shield and some other add-on shield.
XU4Q Thermal Analysis in detail : http://odroid.com/dokuwiki/doku.php?id=en:xu4_benchmark_xu4_xu4q
A MicroSD card or an eMMC module is required to boot the OS. We strongly recommend an eMMC module for faster OS booting, quicker application launching, seamless multi-tasking and efficient access to the cloud.
