ZigBee development XBee CC2530 Eval Kit5
towar niedostępny
Opis
Ten produkt zawiera TYLKO jeden moduł CC2530, podczas gdy do skonfigurowania sieci ZigBee wymagane są co najmniej dwa moduły CC2530.
Zasadniczo ten zestaw może być używany w dwóch aspektach:
- Opracuj aplikację za pomocą dostarczonego oprogramowania W połączeniu z dostarczonym przez nas oprogramowaniem sprzętowym możesz użyć tego zestawu do skonfigurowania minimalnego, gotowego do uruchomienia systemu ZigBee do testowania lub oceny, i nie wymaga on ŻADNEJ wiedzy na temat skomplikowanej specyfikacji ZigBee
-
Opracuj własne oprogramowanie układowe W takim przypadku należy zacząć od podstaw tworzenia swojego rozwiązania, co więcej, wymagane są również debuggery (takie jak CC Debugger) oraz znajomość specyfikacji ZigBee

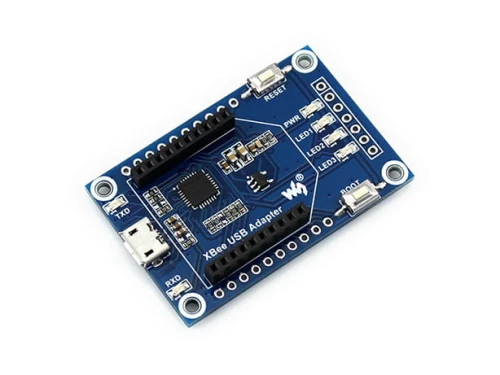

Uwaga: Core2530 (B) jest dostarczany z fabrycznie załadowanym bootloaderem, dlatego możesz programować pliki BIN bezpośrednio przez adapter USB XBee.

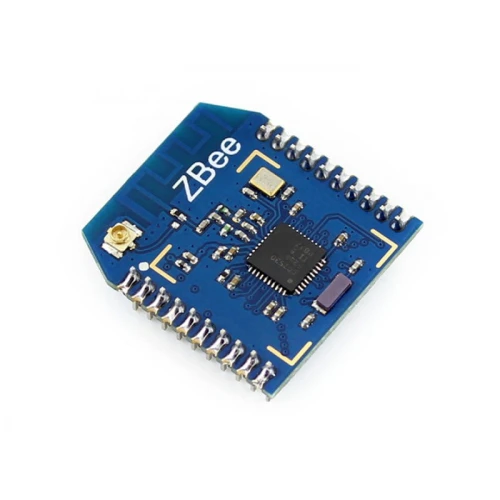

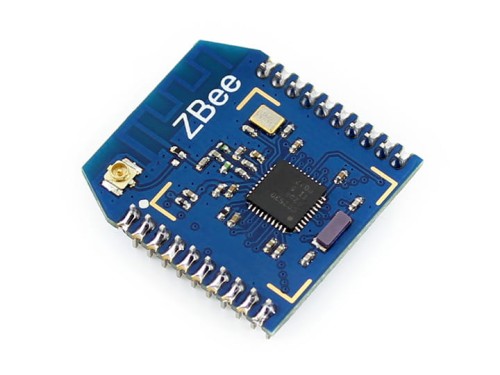

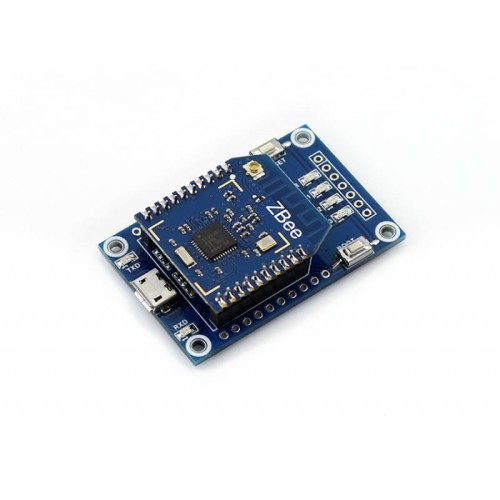

Core2530 (B) Features
- As easy to use as any UART modules
- Provided firmware : Coordinator, Router, End Device
- Router firmware is preloaded by default
- Supports sending large data packet & fast broadcasting via UART
- Supports programming via UART (thanks to the Bootloader, and an serial module is required)
- Supports configuring via upper computer software : working mode, UART port, baudrate, signal channel, etc.
- Optional hardware interface
- XBee compatible straight through pin headers (soldered by default)
- SMT stamp holes are also available (for batch purchase, the pin headers can be removed if required)
- MISC
- Auto networking (at least 1 Coordinator and 1 Router are required)
- Real-time monitoring the signal intensity between Coordinator, Router, and End Device
- Supports onboard PCB antenna and/or external IPEX antenna
Core2530 (B) Specifications
- Onboard chip: CC2530F256RHAR
- Communication distance (open and wide operating environment): up to 130 meters when using PCB antenna
- Frequency range: 2.4GHz
- Wide supply-voltage range (2 V–3.6 V)
- Operating temperature: -40℃ ~ 85℃
- Serial port baud rate: 38400bps (default), different baud rates are available by software configuration
- Dimension: 26mm x 28mm (PCB)
CC2530F256RHAR Features
- Frequency range: 2.4GHz
- 16 transfer chains, software configurable according to environmental conditions
- Radio baud rate up to 250kbps
- High-Performance and Low-Power 8051 microcontroller core with code prefetch
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Wide supply-voltage range (2 V–3.6 V)
- Watchdog timer, battery monitor, and temperature sensor
- 12-Bit ADC with 8 channels and configurable resolution
- 2 powerful USARTs with support for several serial protocols
- IR generation circuitry
- General-Purpose timers (One 16-Bit, Two 8-Bit)
- AES security coprocessor
- 21 General-Purpose I/O pins (19 × 4 mA, 2 × 20 mA)

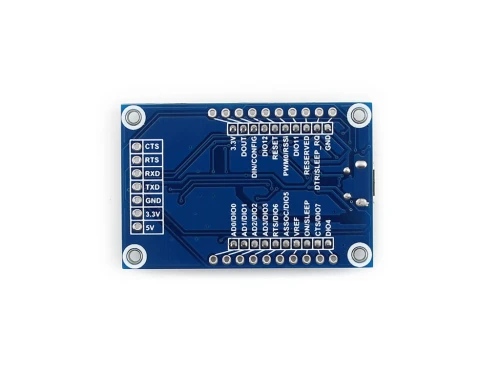

Pin Definition
Wiki: CC2530_Eval_Kit5
