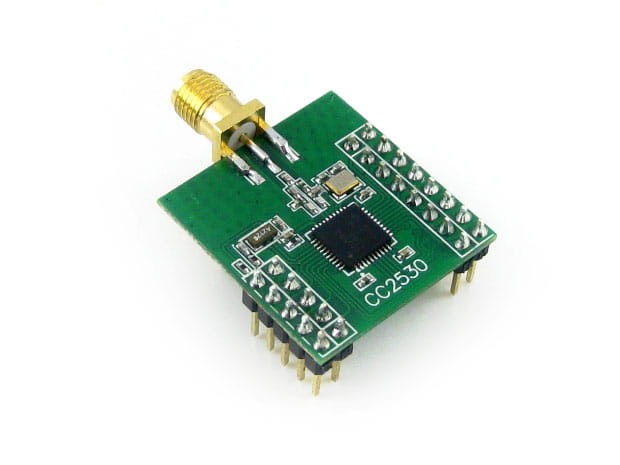

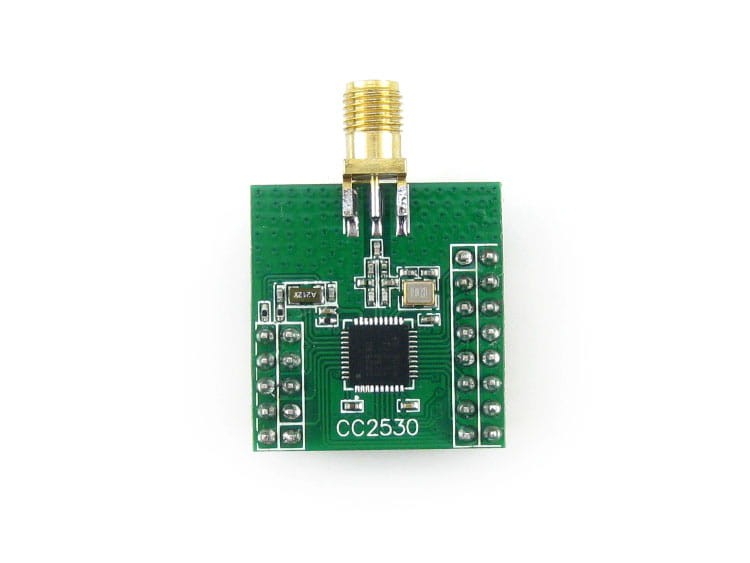

Core2530
towar niedostępny
Opis
Parametry układu CC2530F256RHAR
- Frequency range: 2.4GHz
- 16 transfer chains, software configurable according to environmental conditions
- Radio baud rate up to 250kbps
- High-Performance and Low-Power 8051 microcontroller core with code prefetch
- 2.4-GHz IEEE 802.15.4 compliant RF transceiver
- Wide supply-voltage range (2 V–3.6 V)
- Watchdog timer, battery monitor, and temperature sensor
- 12-Bit ADC with 8 channels and configurable resolution
- 2 powerful USARTs with support for several serial protocols
- IR generation circuitry
- General-Purpose timers (One 16-Bit, Two 8-Bit)
- AES security coprocessor
- 21 General-Purpose I/O pins (19 × 4 mA, 2 × 20 mA)
Specyfikacja modułu Core2530
- chip: CC2530F256RHAR
- Odległość komunikacji:
- Maksymalny zasięg: 350 m
- Stabilna komunikacja: 250 m
- Auto connecting: 120 m (w otwartej przestrzeni)
- Częstotliwość pracy: 2.4GHz
- Napięcie zasilania (2 V–3.6 V)
- Temperatura pracy: -40℃ ~ 85℃
- Prędkośc transmisji portu szeregowego: 38400bps (default), inne dostępne po rekonfiguracji
- Wymiary: 26mm x 27mm (PCB)

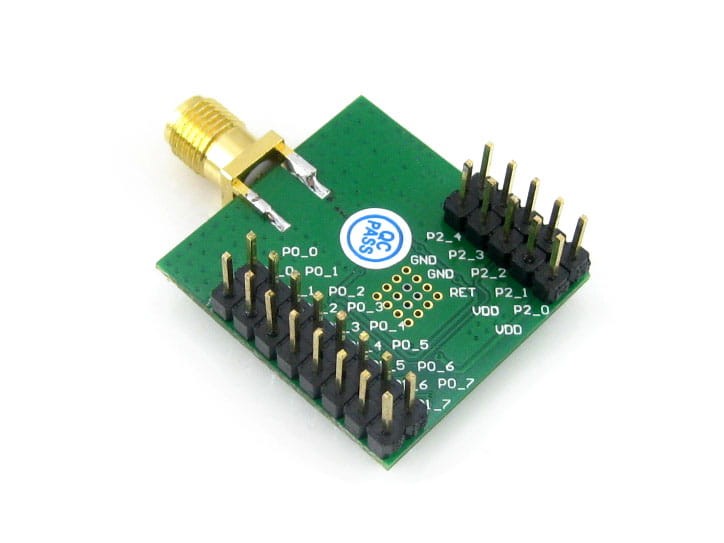

- Interface: all the I/Os
- Rozstaw pinów modułu: 2.54mm
- Odległość od pinów z lewej i prawej strony PCB: 22.86mm (9x2.54mm)
- Antenna: 2.4G 2DB 360° omni-directional
- Moduł może być skonfigurowany jako: Coordinator, Router (default), or EndDevice

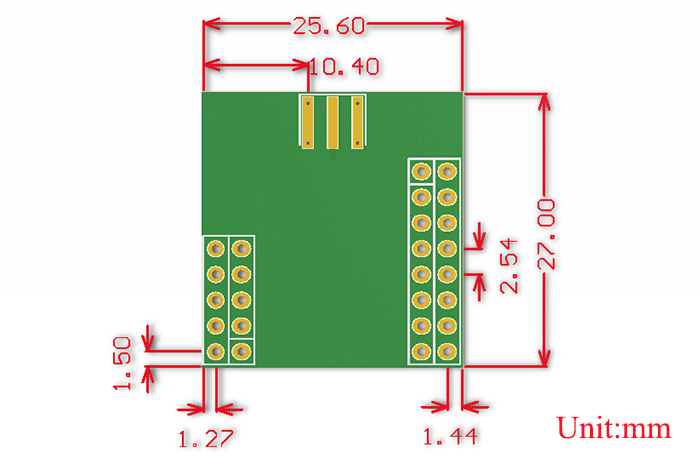

Wymiary zewnętrzne modułu:
Zestaw zawiera:
- Moduł Core2530 ZigBee x 1
- Antena x 1
