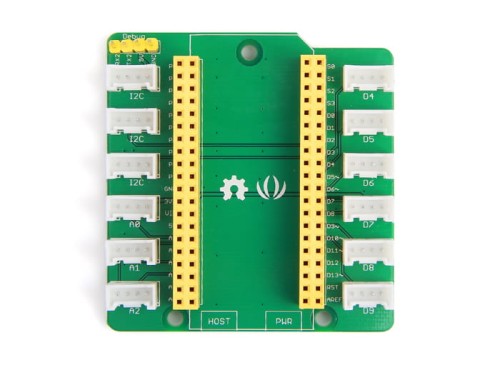

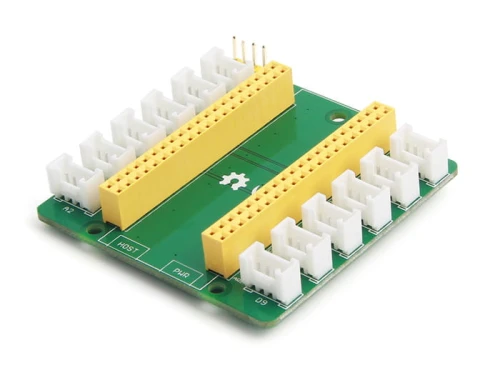

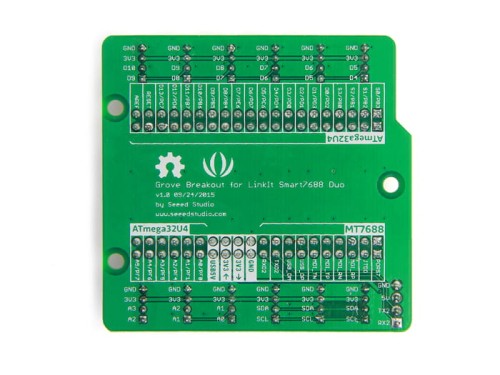

Grove Breakout for LinkItTM Smart 7688 Duo is a Grove port integrated and a feature expansion board for LinkItTM Smart 7688 Duo development board. This breakout board will save a lot of work for quicker prototyping, especially for novices through simplified wiring procedure. So it will help a beginner get a quick start. It supports serial buses like I2C, UART and provides access to reserved original pins of LinkItTM Smart 7688 Duo.
LinkIt Smart 7688 Duo(a compact controller board) is an open development board, based on the OpenWrt Linux distribution, MT7688 and ATmega32u4. The board is designed especially to enable the prototyping of Rich Application IoT devices for smart house.
- Grove interfaces: I2C × 3, Analog× 3, Digital× 6
- Input voltage: 5.0V(With USB Power port)
- Operating voltage: 3.3V
- Debug pins conect with MT7688
- Other pins connect with ATmega32U4.
Demo –Facebook Likes Reminder
It will remind you when you have a new 'like' on your facebook page. The device will vibrate，the lights will twinkle, while the screen will show the real-time facebook likes.
Learn more at our Recipe.
Please visit our Wiki page for more info about this product. It will be highly appreciated if you can help improve the documents, add demo codes or tutorials. For technical support, please post your questions to our Forum.
