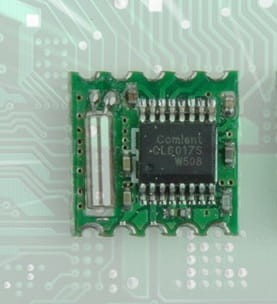

Moduł z CL6017S
Cena regularna:
towar niedostępny
Product Description
The CL6017S is a single-chip FM stereo radio
for portable application with fully integrated
digital low-IF selectivity and demodulation. The
radio is completely adjustment-free and only
requires a minimum of small and low-cost
external components. The radio can tune to
worldwide FM bands.
Features
Worldwide FM Bands (70 MHz to 108 MHz)
Digital Low-IF Receiver
32.768KHz/13MHz Reference Clock
Frequency Synthesizer with Integrated VCO
Automatic Frequency Control (AFC)
Automatic Gain Control (AGC)
DSP MPX Stereo Decoder
DSP FM Demodulator
Adaptive Noise Cancellation
MONO/Stereo Blend
High Cut
Software Mute
Programmable De-emphasis
Bass Boost
Integrated LDO Regulator
Supply Voltage Ranges from 2.5 V to 5.0 V
Datasheet CL6017S.pdf


14,11 zł
Cena regularna:
33,60 zł
