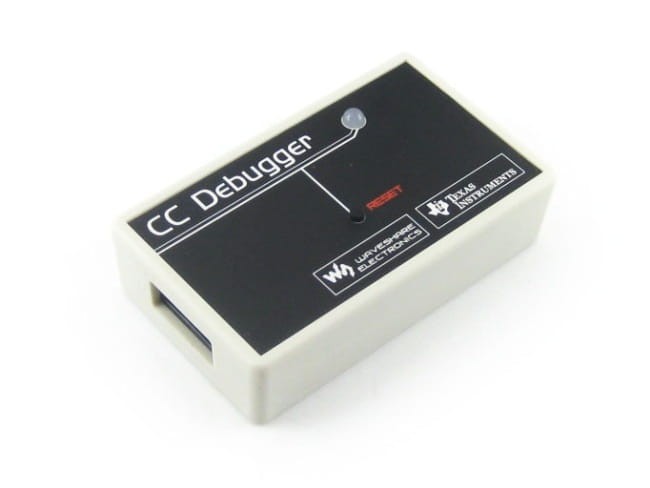

CC Debugger

Cena:: 108,00 zł
zawiera 23% VAT, bez kosztów dostawy
108.00
ilość szt.

towar niedostępny

Producent: WaveShare
Kod produktu: CC Debugger Waveshare 6799

Opis

CC Debugger

CC Debugger debugger oraz programator dla SOC z serii CCxxxx opartych na rdzeniu 8051 produkowanych przez Texas Instruments. Programator jest zgodny z oryginalnym TI CC Debuggerem.

In addition, CC Debugger is used for configuring the CC85xx devices with PurePath Wireless Configurator.


Key Features CC Debugger

  • Performance
    • Compatible with the original TI CC Debugger
    • Supported Operating Systems: Windows 2000, Windows xp sp2/sp3, Windows Vista 32bit, Windows 7 32bit
    • Target voltage: 1.2V~3.6V
    • Capable of powering the target board from the debugger
    • Operating temperature: 0℃~85℃
  • Supported Software
    • IAR Embedded Workbench For C8051
    • SmartRF Flash Programmer
    • SmartRF Studio
    • SmartRF Packet Sniffer
    • PurePath Wireless Configurator
  • Connects to PC
    • Computer connection via USB interface
  • Connects to target board
    • Target board connection via 10-pin IDC connector (2x5 2.54mm pitch). The figure below shows the header pinout:CC Debugger header pinout

Supported Devices

  • Programming and debugging the following 8051-based system-on-chips from Texas Instruments:
    • CC1110, CC1111
    • CC2430, CC2431
    • CC2510, CC2511
    • CC2530, CC2531, CC2533
    • CC2540, CC2541
    • CC2543, CC2544, CC2545
  • Controlling the following transceivers from SmartRF Studio:
    • CC1120, CC1121, CC1125, CC1175
    • CC1101, CC110L, CC113L, CC115L
    • CC2520
  • Configuring the CC85xx devices with PurePath Wireless Configurator:
    • CC8520, CC8521
    • CC8530, CC8531

LED Status

  • OFF: The debugger has no power or there is no valid firmware on the debugger.
  • AMBER (BOTH LEDS ON): The debugger is powered, but there is no valid firmware.
  • RED LED BLINKING: The Debugger is in Boot Recovery Mode.
  • RED LED ON: No device detected. This might be due to old firmware on the CC Debugger, or a problem with the hardware connection (make sure the target board is properly powered and connected correctly).
  • GREEN LED ON: The target device has been properly detected. It is possible to start programming/debugging.

Package Contains

  1. CC Debugger × 1
  2. USB cable × 1
  3. 10-pin flat cable × 1
  4. User Guide CD × 1


Downloads

Development resources:user manual, schematic, firmware, software, etc.

Wiki: http://www.waveshare.com/wiki/CC_Debugger
